DIV 22 · PLUMBINGBATHTUBSCUT SHEET INDEXED

American Standard9046502

American Standard Anti-Scald Pressure Balance Tub & Shower Set (Tub and Shower Trim Kit). Model 9046.502. Pressure balancing cartridge maintains constant output temperature; Washerless ceramic disc valve cartridge with back-to-back capability; Adjustable hot limit safety stop to reduce scalding risk; Easy Clean showerhead with 2.5 gpm flow restrictor. material: Cast brass body, ceramic disc valve cartridge

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF9046502.pdfData sheet

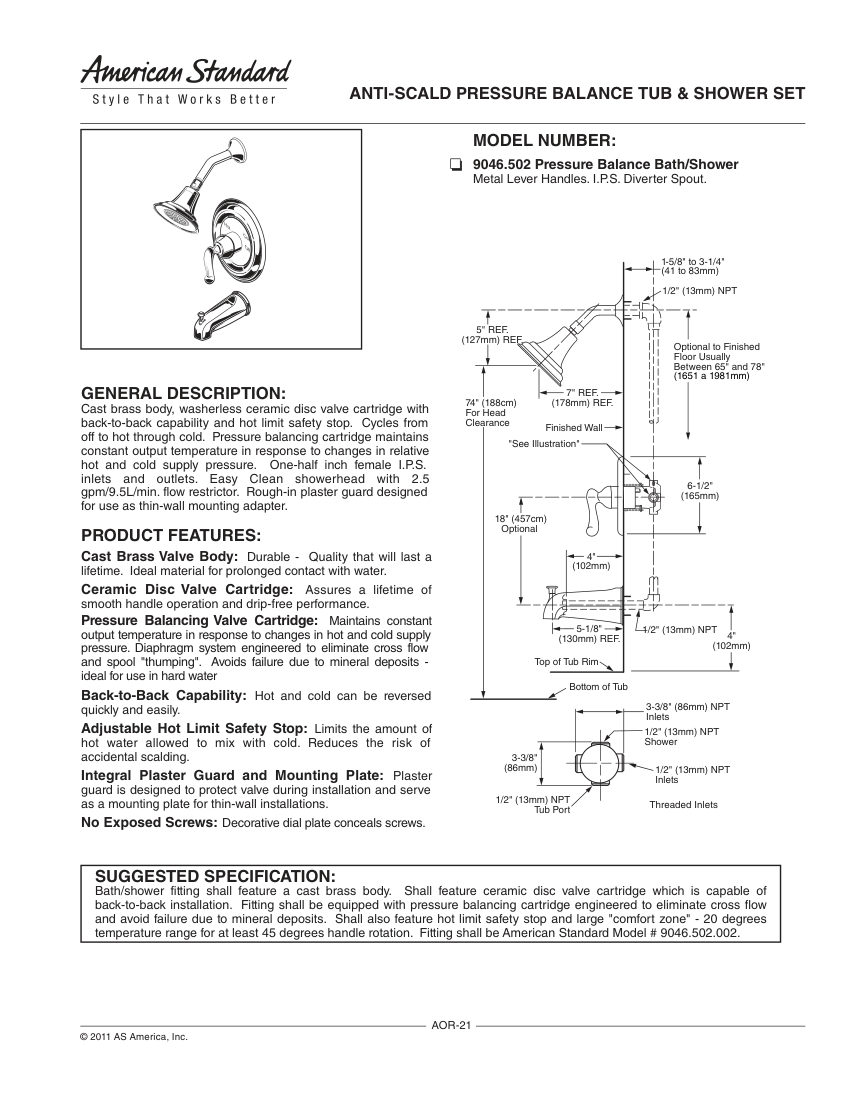

American Standard 9046502 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
9046502
Product type
Bathtubs
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number9046502
DescriptionAmerican Standard Anti-Scald Pressure Balance Tub & Shower Set (Tub and Shower Trim Kit). Model 9046.502. Pressure balancing cartridge maintains constant output temperature; Washerless ceramic disc valve cartridge with back-to-back capability; Adjustable hot limit safety stop to reduce scalding risk; Easy Clean showerhead with 2.5 gpm flow restrictor. material: Cast brass body, ceramic disc valve cartridge
Connection size1/2" NPT
End connectionFemale I.P.S. inlets and outlets
Flow Rate2.5 gpm/9.5L/min
MountingIntegral plaster guard and mounting plate for thin-wall installations; dimen

Also cataloged as: 9046502.002, 9046502.181
