DIV 22 · PLUMBINGFAUCETSCUT SHEET INDEXED

American StandardCovina 2-Handle 4 Inch Centerset Bathroom Faucet9090221

American Standard Centerset Lavatory Faucet (Covina). Model 9090.221.002 / 9090.221.295. 1/4 turn washerless ceramic disc valve cartridges; Lead free with ≤ 0.25% total lead content; Includes pop-up drain; Hand-tighten Quick Spin Nuts for installation. material: Cast brass waterways, metal body, metal lever handles

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF9090221.pdfData sheet

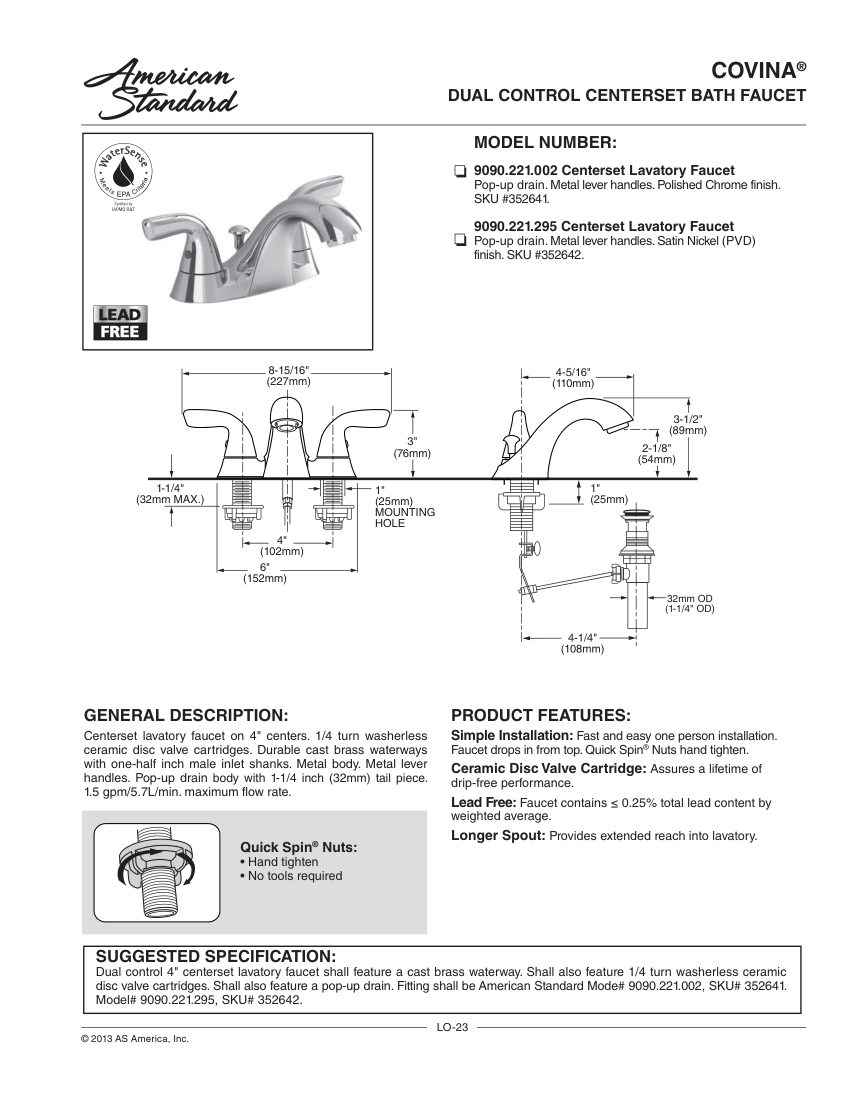

American Standard 9090221 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
9090221
Product type
Faucets
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number9090221
DescriptionAmerican Standard Centerset Lavatory Faucet (Covina). Model 9090.221.002 / 9090.221.295. 1/4 turn washerless ceramic disc valve cartridges; Lead free with ≤ 0.25% total lead content; Includes pop-up drain; Hand-tighten Quick Spin Nuts for installation. material: Cast brass waterways, metal body, metal lever handles
Connection size1/2 inch male inlet shanks
End connectionPop-up drain with 1-1/4 inch (32mm) tail piece
Flow Rate1.5 gpm/5.7L/min maximum
FinishPolished Chrome / Satin Nickel (PVD)
Mounting4 inch centerset, top drop-in with Quick Spin Nuts.

Also cataloged as: 9090221.002, 9090221.295
