DIV 22 · PLUMBINGFAUCETSCUT SHEET INDEXED

American Standard9316800

American Standard Two-Handle Widespread Lavatory Faucet (Jocelyn). Model 9316.800. 1/4 turn washerless ceramic disc valve cartridges; Non-metallic Speed Connect pop-up drain with 1-1/4" tail piece; Flexible hose connections for 6" to 12" installations; Lead free with ≤ 0.25% total lead content. material: Cast brass valve bodies, metal spout, non-metallic drain body

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF9316800.pdfData sheet

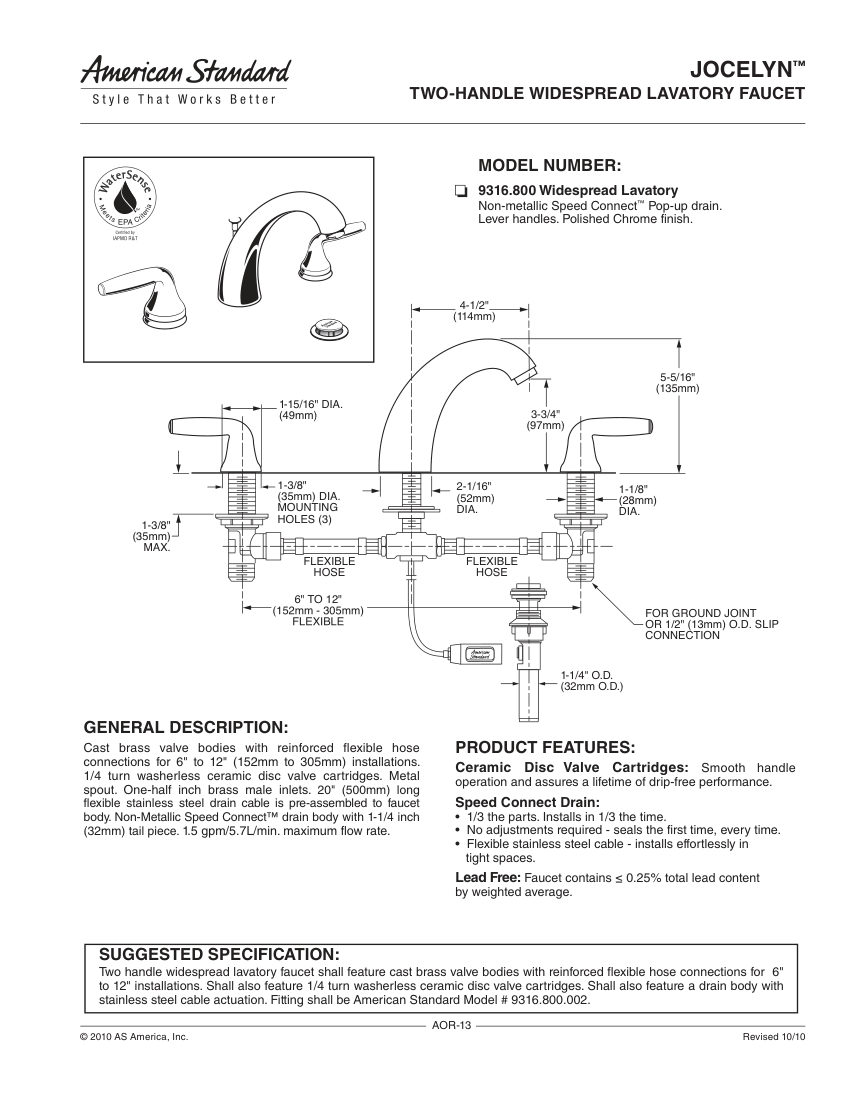

American Standard 9316800 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
9316800
Product type
Faucets
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number9316800
DescriptionAmerican Standard Two-Handle Widespread Lavatory Faucet (Jocelyn). Model 9316.800. 1/4 turn washerless ceramic disc valve cartridges; Non-metallic Speed Connect pop-up drain with 1-1/4" tail piece; Flexible hose connections for 6" to 12" installations; Lead free with ≤ 0.25% total lead content. material: Cast brass valve bodies, metal spout, non-metallic drain body
Connection size1/2 inch brass male inlets
End connectionFlexible hose connections
Flow Rate1.5 gpm/5.7L/min
FinishPolished Chrome
MountingWidespread, 3 mounting holes.

Also cataloged as: 9316800.002
