DIV 22 · PLUMBINGFAUCETSCUT SHEET INDEXED

American StandardXavier SelectFlo Pull-Out Kitchen Faucet9449101

American Standard Pull-Out Kitchen Faucet (Xavier). Model 9449.101. SelectFlo 4-function spray head (Stream, Spray, Mist, Jet); Washerless 40mm ceramic disc valve cartridge; Memory position valving for temperature retention; Lead free with ≤ 0.25% total lead content. material: Metal body, Stainless Steel supply hoses

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF9449101.pdfData sheet

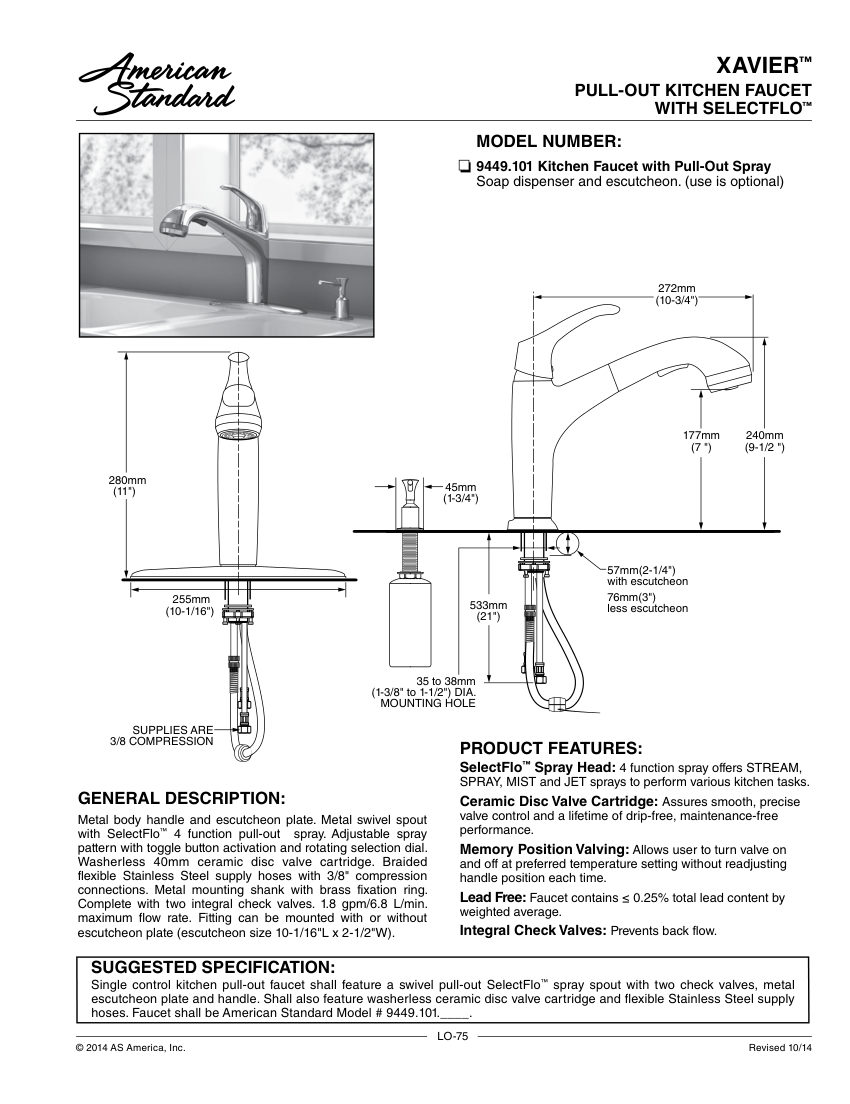

American Standard 9449101 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
9449101
Product type
Faucets
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number9449101
DescriptionAmerican Standard Pull-Out Kitchen Faucet (Xavier). Model 9449.101. SelectFlo 4-function spray head (Stream, Spray, Mist, Jet); Washerless 40mm ceramic disc valve cartridge; Memory position valving for temperature retention; Lead free with ≤ 0.25% total lead content. material: Metal body, Stainless Steel supply hoses
Connection size3/8" compression
End connection3/8" compression
Flow Rate1.8 gpm / 6.8 L/min
FinishPolished Chrome, Stainless Steel (PVD)
Mounting35 to 38mm (1-3/8" to 1-1/2") DIA. mounting hole.

Also cataloged as: 9449101.002
