American StandardAxis 72-Inch High Neo-Angle Shower DoorAM4242N3400C

American Standard Neo-Angle Shower Door (Shower Door). Model AM4242N3.400C. Glass thickness 5/16" for door panel and 1/4" for fixed panels; Door opening width 27-7/8"; Includes 15" silver handle; Compatible with Axis 42" Shower Base 4242N-ST3 and Wall Surround 4242CW. material: Clear tempered safety glass, aluminum components, stainless steel screws

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFAM4242N3400C.pdfData sheet

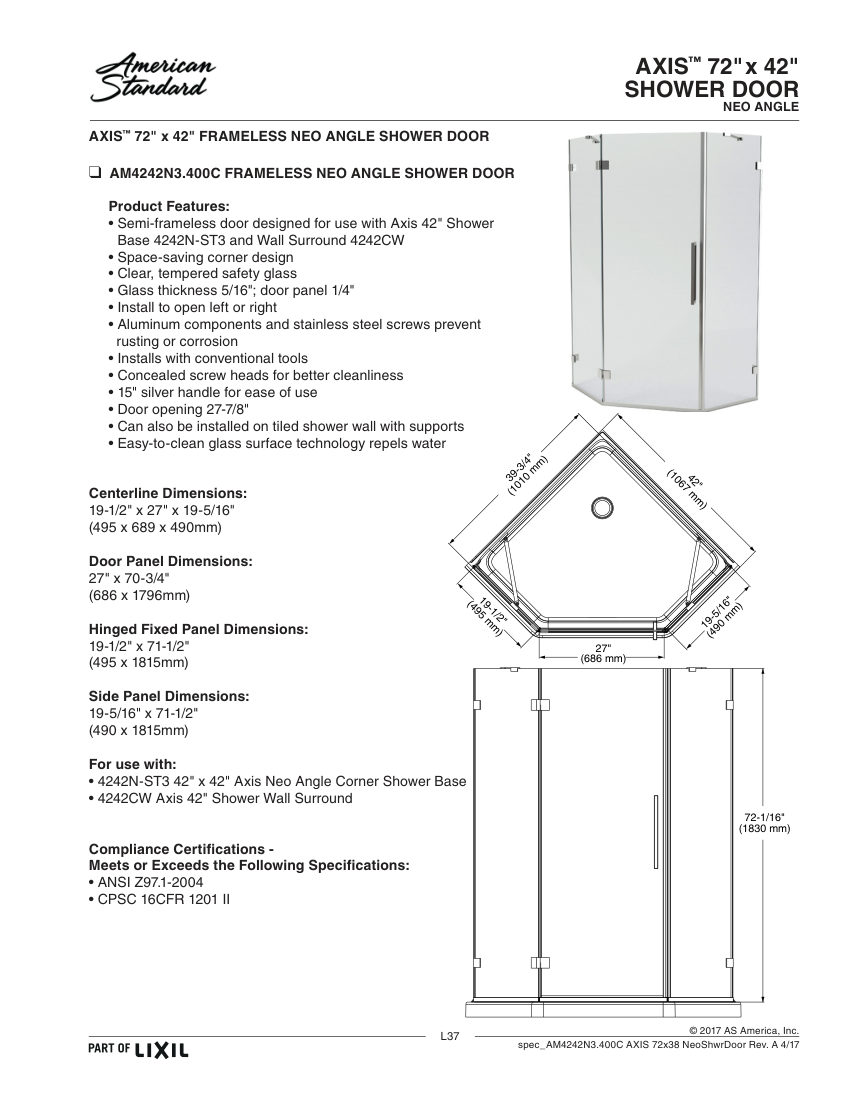

American Standard AM4242N3400C cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
AM4242N3400C
Product type
Showers
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberAM4242N3400C
DescriptionAmerican Standard Neo-Angle Shower Door (Shower Door). Model AM4242N3.400C. Glass thickness 5/16" for door panel and 1/4" for fixed panels; Door opening width 27-7/8"; Includes 15" silver handle; Compatible with Axis 42" Shower Base 4242N-ST3 and Wall Surround 4242CW. material: Clear tempered safety glass, aluminum components, stainless steel screws
FinishClear glass, silver handle
MountingSemi-frameless, installs to open left or right
Dimensions72" x 42" overall; Door panel 27" x 70-3/4"; Hinged fixed panel 19-1/2" x 71-1/2"; Side panel 19-5/16" x 71-1/2"
ComplianceANSI Z97.1-2004

Also cataloged as: AM4242N3400C.213
