American Standard2-Handle Thermo Rough Valve W/Built-In-3R523

American Standard Two-Handle Thermostatic Rough Valve with Built-In 3-Way Diverter (Rough Valves). Model R523. Wax element thermostatic unit maintains constant water temperature; Built-in 3-way diverter allows selection between 2 or 3 shower outlets; Twin ceramic disc valve cartridges control volume; Adjustable hot limit safety stop limits max temperature to 112°F, 109°F, or 104°F. material: Cast brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFR523.pdfData sheet

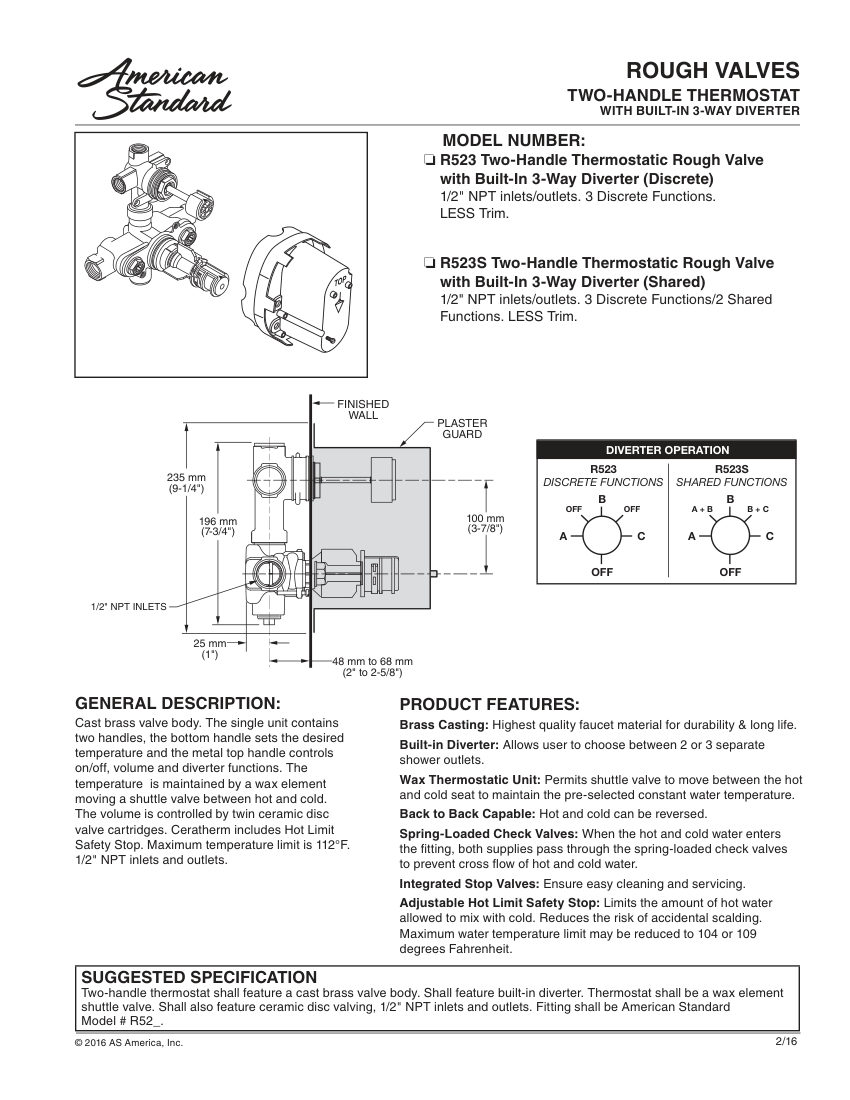

American Standard R523 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
R523
Product type
Plumbing Fixtures
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberR523
DescriptionAmerican Standard Two-Handle Thermostatic Rough Valve with Built-In 3-Way Diverter (Rough Valves). Model R523. Wax element thermostatic unit maintains constant water temperature; Built-in 3-way diverter allows selection between 2 or 3 shower outlets; Twin ceramic disc valve cartridges control volume; Adjustable hot limit safety stop limits max temperature to 112°F, 109°F, or 104°F. material: Cast brass
Connection size1/2" NPT
End connectionNPT
MountingRough
Dimensions235 mm (9-1/4") height, 196 mm (7-3/4") width, 100 mm (3-7/8") depth
ComplianceMeets or exceeds applicable codes an
