DIV 22 · PLUMBINGPLUMBING FIXTURESCUT SHEET INDEXED

American StandardCopeland Trim KitsT005502

American Standard Pressure Balance Bath/Shower Fitting Trim Kit (Copeland). Model T005.502. Includes metal lever handle and wall escutcheon; Excludes valve body (order separately); Compatible with R120 Series Pressure Balance Valves; Single function showerhead max flow 2.5 gpm. material: Cast brass valve body, metal lever handle, metal wall escutcheon

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFT005502.pdfData sheet

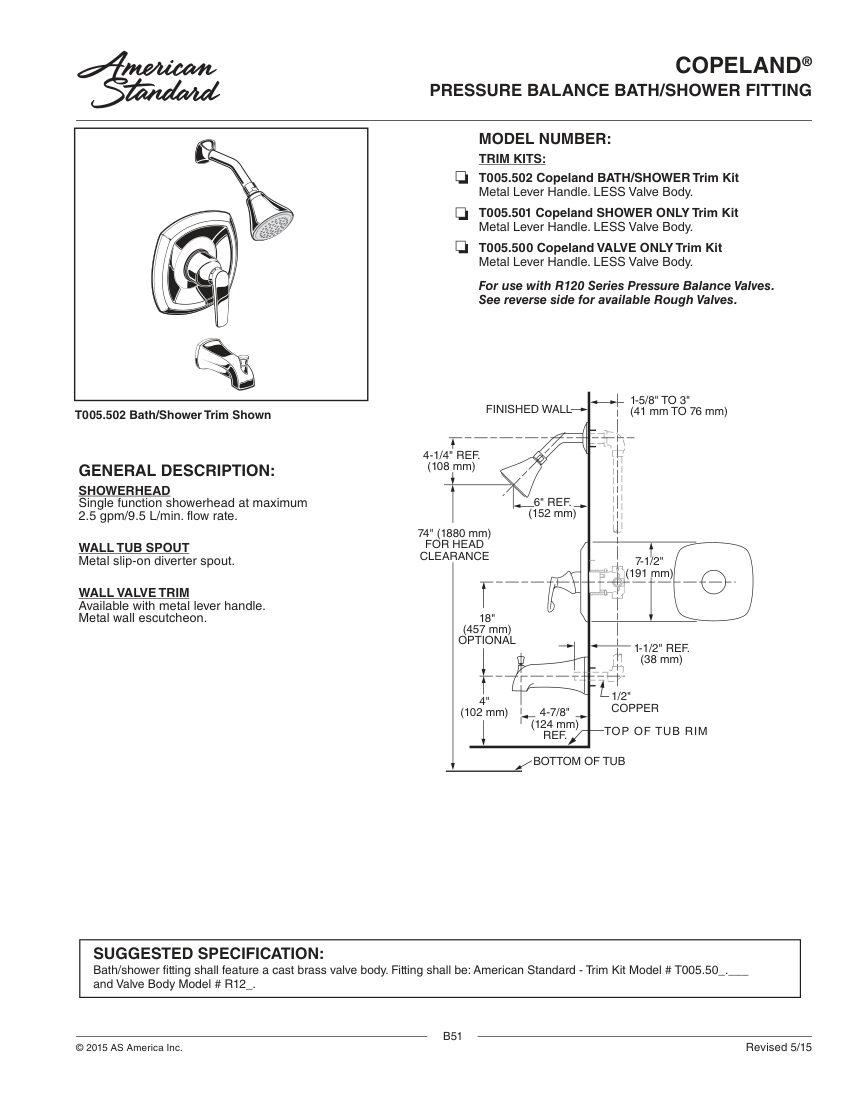

American Standard T005502 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
T005502
Product type
Plumbing Fixtures
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberT005502
DescriptionAmerican Standard Pressure Balance Bath/Shower Fitting Trim Kit (Copeland). Model T005.502. Includes metal lever handle and wall escutcheon; Excludes valve body (order separately); Compatible with R120 Series Pressure Balance Valves; Single function showerhead max flow 2.5 gpm. material: Cast brass valve body, metal lever handle, metal wall escutcheon
Connection size1-1/2" REF. (38 mm) copper top of tub rim
End connectionSlip-on diverter spout
Flow Rate2.5 gpm/9.5 L/min (showerhead max)
FinishPolished Chrome, Oil Rubbed Bronze, PVD Satin Nickel
MountingWall mount.

Also cataloged as: T005502.002, T005502.224, T005502.295
