DIV 22 · PLUMBINGPLUMBING FIXTURESCUT SHEET INDEXED

American StandardCopeland Central Thermostat Valve Trim KitT005730

American Standard Thermostatic Mixing Valve Trim Kit (Copeland Central Thermostat). Model T005.730. Wax element shuttle valve maintains constant temperature; Includes adjustable hot limit safety stop (max 112°F, adjustable to 104°F or 109°F); Features spring-loaded check valves to prevent cross flow; Back-to-back capable (hot and cold supplies can be reversed). material: Cast brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFT005730.pdfData sheet

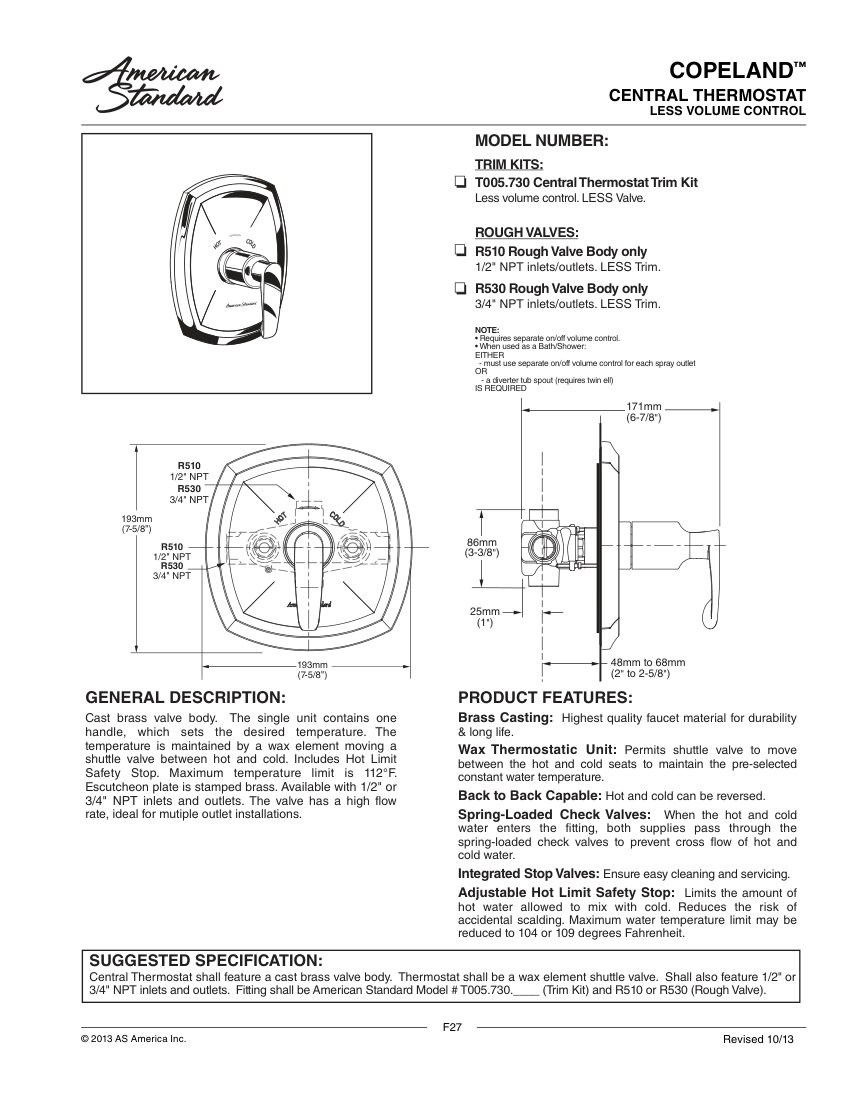

American Standard T005730 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
T005730
Product type
Plumbing Fixtures
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberT005730
DescriptionAmerican Standard Thermostatic Mixing Valve Trim Kit (Copeland Central Thermostat). Model T005.730. Wax element shuttle valve maintains constant temperature; Includes adjustable hot limit safety stop (max 112°F, adjustable to 104°F or 109°F); Features spring-loaded check valves to prevent cross flow; Back-to-back capable (hot and cold supplies can be reversed). material: Cast brass
Connection size1/2" or 3/4" NPT
End connectionNPT
FinishStamped brass escutcheon
MountingRough valve body (R510 or R530)
Dimensions193mm (7-5/8") x 171mm (6-7/8").

Also cataloged as: T005730.002, T005730.224, T005730.295
