DIV 22 · PLUMBINGSHOWERSCUT SHEET INDEXED

American StandardColony® PRO 1.75 GPM Shower Trim Kit with Lever HandleT075507

American Standard Pressure Balance Bath/Shower Fitting Trim Kit (Colony PRO). Model T075.507. Water saving showerhead with max 1.75 gpm/6.6 L/min flow rate; Includes metal lever handle and plastic wall escutcheon; Excludes valve body (for use with R111 Series Pressure Balance Valves); ADA Compliant and EPA WaterSense Certified. material: Metal lever handle, Plastic wall escutcheon

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFT075507.pdfData sheet

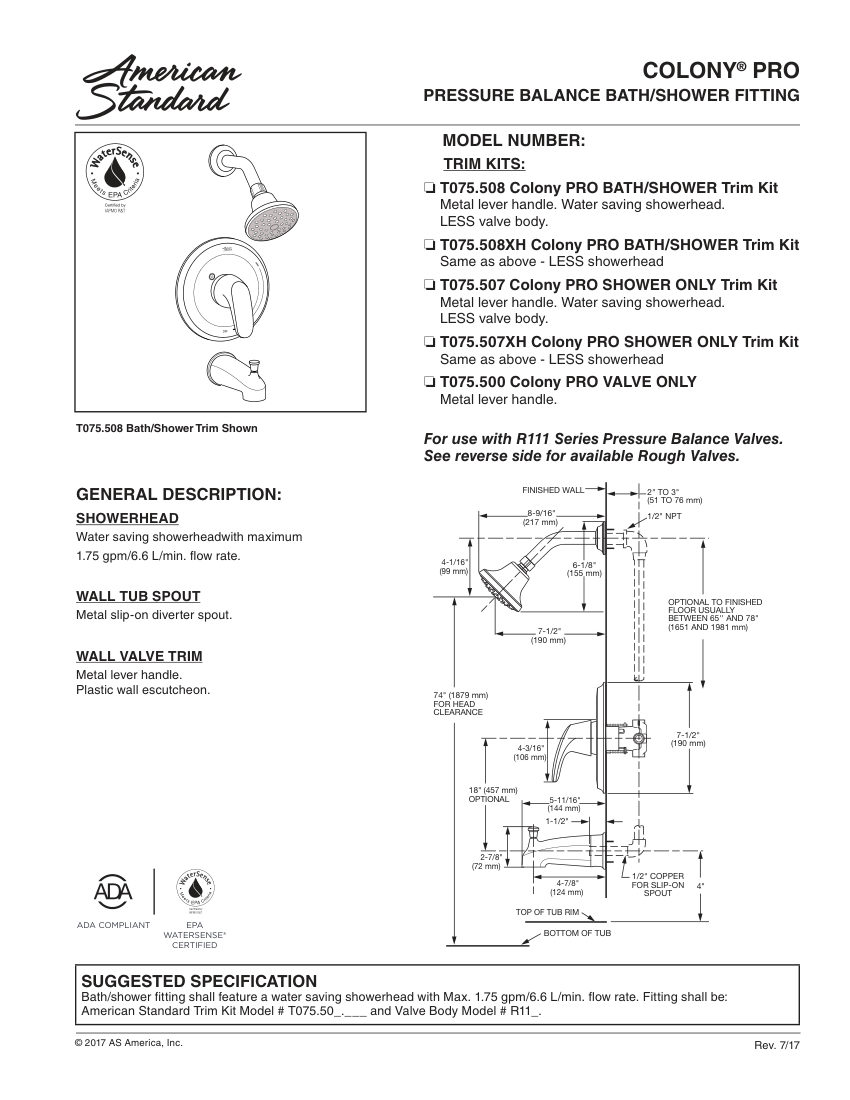

American Standard T075507 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
T075507
Product type
Showers
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberT075507
DescriptionAmerican Standard Pressure Balance Bath/Shower Fitting Trim Kit (Colony PRO). Model T075.507. Water saving showerhead with max 1.75 gpm/6.6 L/min flow rate; Includes metal lever handle and plastic wall escutcheon; Excludes valve body (for use with R111 Series Pressure Balance Valves); ADA Compliant and EPA WaterSense Certified. material: Metal lever handle, Plastic wall escutcheon
Connection size1/2" NPT
End connection1/2" NPT
Flow Rate1.75 gpm/6.6 L/min
MountingWall
Dimensions8-9/16" (217 mm) from finished wall to showerhead.

Also cataloged as: T075507.002, T075507.278, T075507.295
