DIV 22 · PLUMBINGPLUMBING FIXTURESCUT SHEET INDEXED

American StandardReliant 3 Valve ONLY Trim KitT385500

American Standard Pressure Balance Bath/Shower Fitting Trim Kit (Reliant 3). Model T385500. Single function showerhead at maximum 2.5 gpm/9.5 L/min; Washerless 47mm ceramic disc valve cartridge; Pressure balancing cartridge maintains constant output temperature; Adjustable hot limit safety stop. material: Cast brass valve body, metal lever handle

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFT385500.pdfData sheet

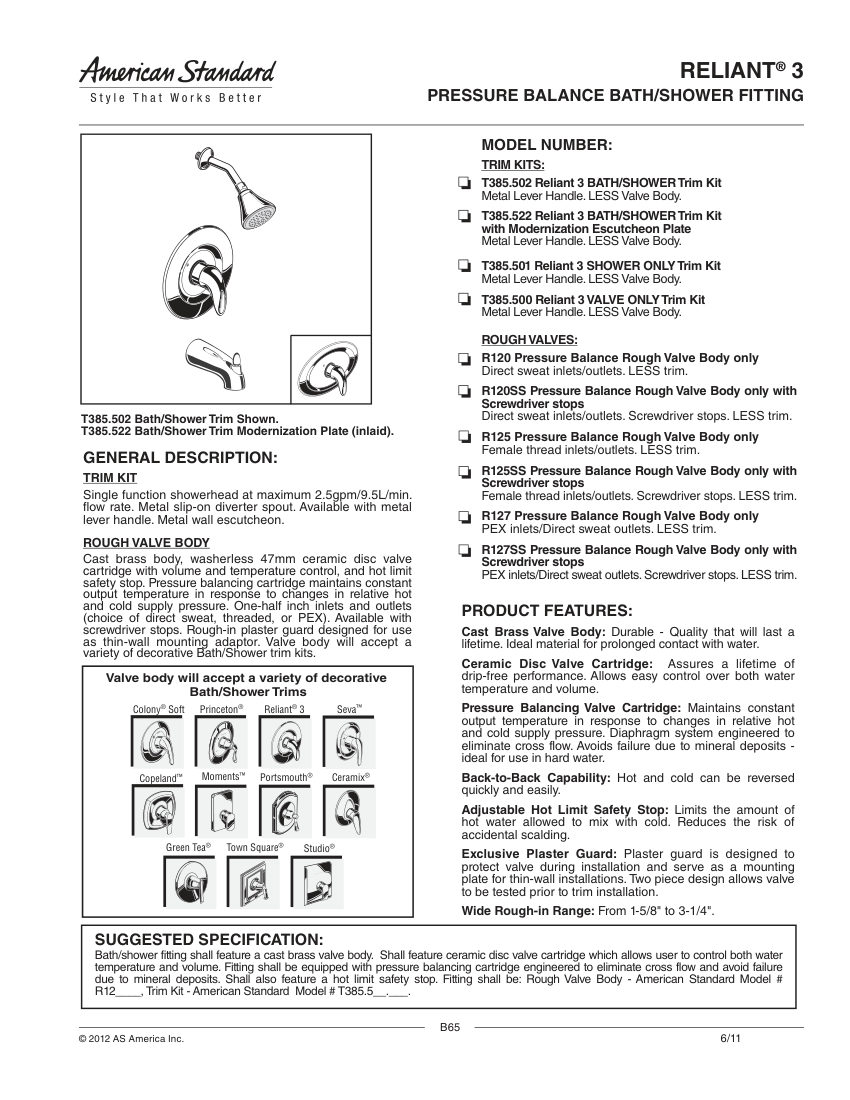

American Standard T385500 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
T385500
Product type
Plumbing Fixtures
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberT385500
DescriptionAmerican Standard Pressure Balance Bath/Shower Fitting Trim Kit (Reliant 3). Model T385500. Single function showerhead at maximum 2.5 gpm/9.5 L/min; Washerless 47mm ceramic disc valve cartridge; Pressure balancing cartridge maintains constant output temperature; Adjustable hot limit safety stop. material: Cast brass valve body, metal lever handle
Connection size1/2 inch inlets and outlets
End connectionDirect sweat, threaded, or PEX (valve body options)
Flow Rate2.5 gpm / 9.5 L/min
MountingThin-wall mounting adaptor, plaster guard
DimensionsRough-in range 1-5/8" to 3-1/4".

Also cataloged as: T385500.002, T385500.295
