American StandardPortsmouth 2-Handle Thermostatic Shower Valve Trim KitT420740

American Standard Thermostatic Shower Valve Trim Kit (Shower Valve). Model T420.740. Wax element thermostatic unit maintains constant water temperature; Twin ceramic disc valve cartridges for volume control; Adjustable hot limit safety stop (max 112°F, adjustable to 104°F or 109°F); Spring-loaded check valves prevent cross flow of hot and cold water. material: Cast Brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFT420740.pdfData sheet

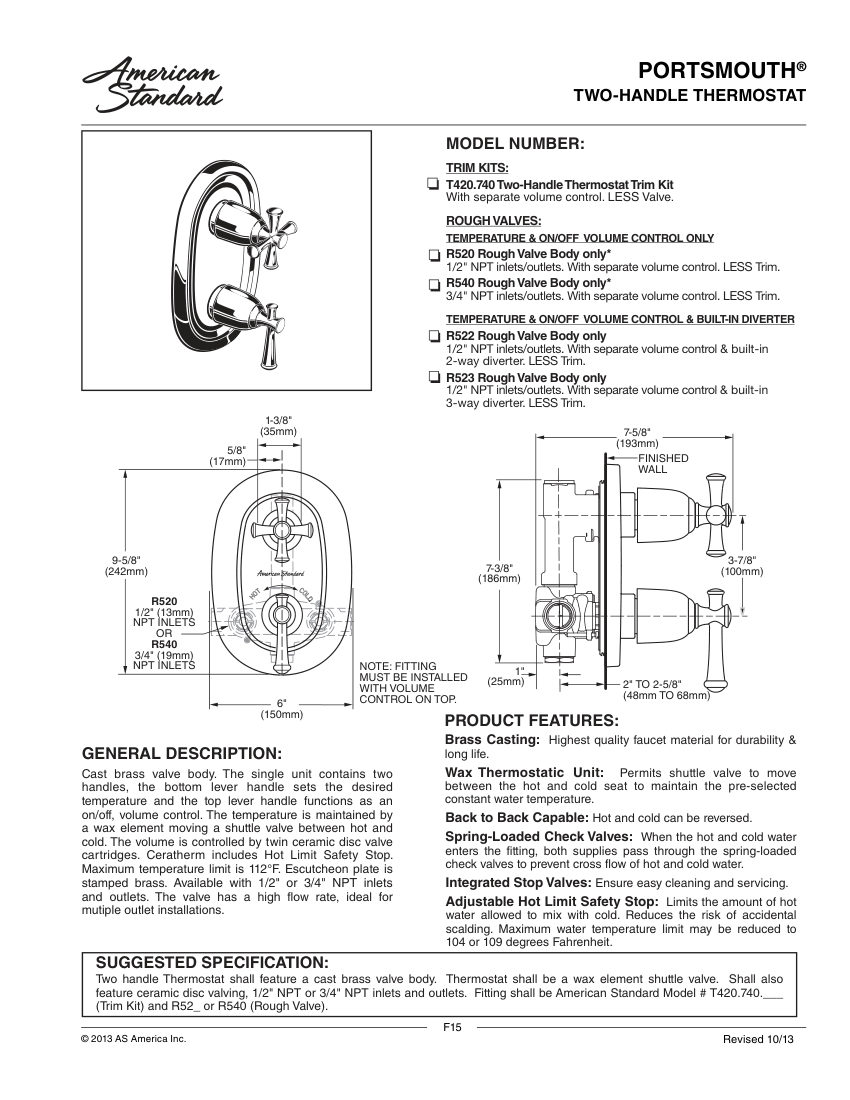

American Standard T420740 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
T420740
Product type
Showers
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberT420740
DescriptionAmerican Standard Thermostatic Shower Valve Trim Kit (Shower Valve). Model T420.740. Wax element thermostatic unit maintains constant water temperature; Twin ceramic disc valve cartridges for volume control; Adjustable hot limit safety stop (max 112°F, adjustable to 104°F or 109°F); Spring-loaded check valves prevent cross flow of hot and cold water. material: Cast Brass
Connection size1/2" or 3/4" NPT
End connectionNPT
Flow RateHigh flow rate
MountingRough valve body
Dimensions9-5/8" (242mm) width, 7-5/8" (193mm) height.

Also cataloged as: T420740.002, T420740.224, T420740.295
