DIV 22 · PLUMBINGSHOWERSCUT SHEET INDEXED

American StandardBerwick® 2-Handle Thermostatic Shower Valve TrimT430740

American Standard Two-Handle Thermostatic Shower Valve Trim (Shower Valve). Model T430.740. Wax element thermostatic unit maintains constant water temperature; Twin ceramic disc valve cartridges for volume control; Adjustable hot limit safety stop (max 112°F, adjustable to 104°F or 109°F); Spring-loaded check valves prevent cross flow of hot and cold water. material: Cast brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFT430740.pdfData sheet

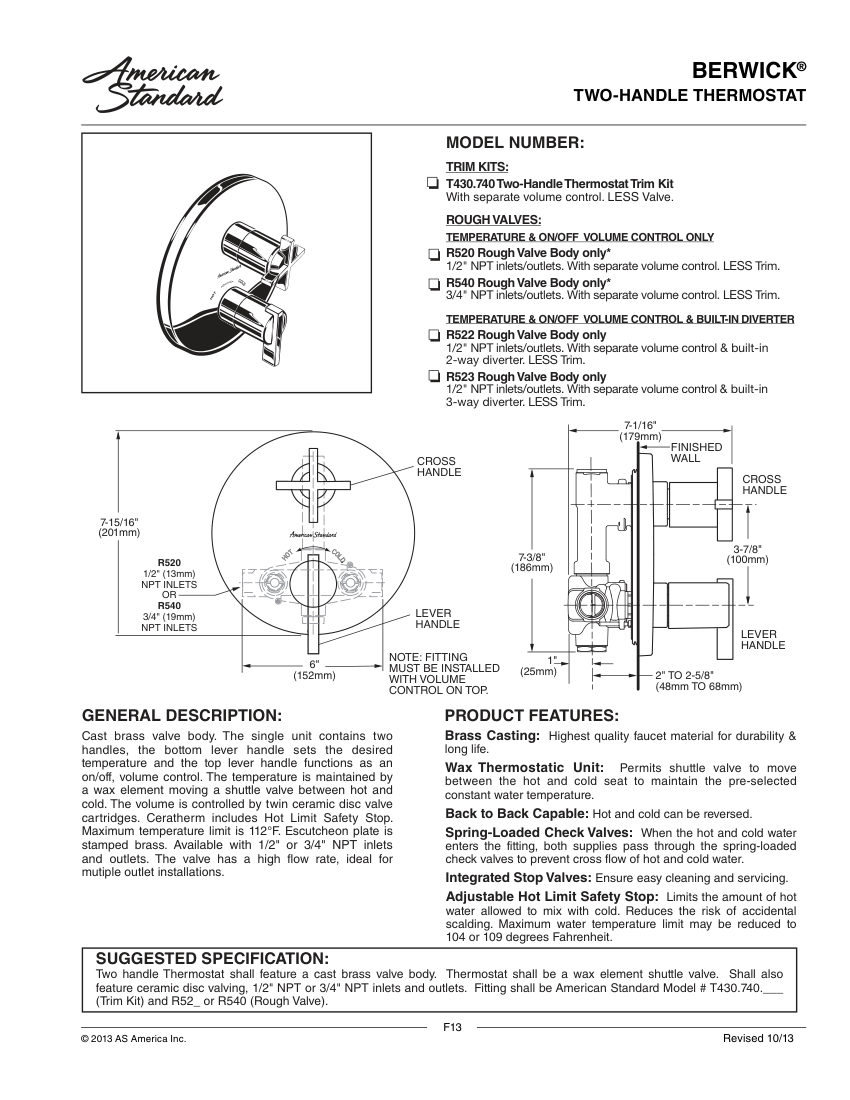

American Standard T430740 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
T430740
Product type
Showers
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberT430740
DescriptionAmerican Standard Two-Handle Thermostatic Shower Valve Trim (Shower Valve). Model T430.740. Wax element thermostatic unit maintains constant water temperature; Twin ceramic disc valve cartridges for volume control; Adjustable hot limit safety stop (max 112°F, adjustable to 104°F or 109°F); Spring-loaded check valves prevent cross flow of hot and cold water. material: Cast brass
Connection size1/2" NPT or 3/4" NPT
End connectionNPT
Flow RateHigh flow rate
MountingRough valve body
Dimensions7-1/16" (179mm) finished cross handle.

Also cataloged as: T430740.002, T430740.295
