DIV 22 · PLUMBINGBATHTUBSCUT SHEET INDEXED

American StandardT440502

American Standard Pressure Balance Bath/Shower Trim Kit (Bath/Shower Fitting). Model T440.502. Includes 6" brass rain showerhead and 12" shepherd's crook shower arm; Features metal lever handle and metal slip-on diverter spout; Valve body uses 47mm ceramic disc cartridge with pressure balancing; Equipped with adjustable hot limit safety stop. material: Brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFT440502.pdfData sheet

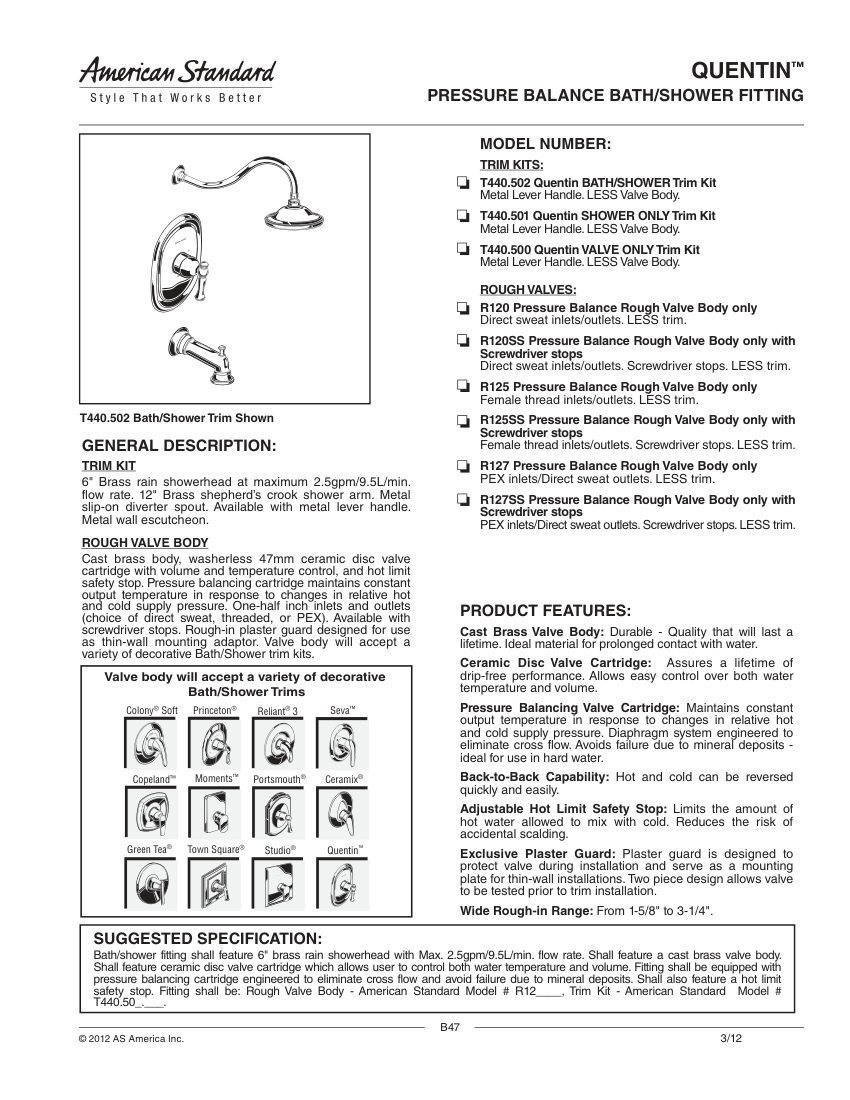

American Standard T440502 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
T440502
Product type
Bathtubs
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberT440502
DescriptionAmerican Standard Pressure Balance Bath/Shower Trim Kit (Bath/Shower Fitting). Model T440.502. Includes 6" brass rain showerhead and 12" shepherd's crook shower arm; Features metal lever handle and metal slip-on diverter spout; Valve body uses 47mm ceramic disc cartridge with pressure balancing; Equipped with adjustable hot limit safety stop. material: Brass
Connection size1/2 inch
End connectionDirect sweat, threaded, or PEX (valve dependent)
Flow Rate2.5 gpm / 9.5 L/min
MountingWall
Dimensions6" rain showerhead, 12" shower arm.

Also cataloged as: T440502.002, T440502.224, T440502.295
