American StandardTown Square® S Single-Handle Diverter Valve Trim KitT455430

American Standard In-Wall Diverter Valve Trim Kit (Town Square® S). Model T455430. Trim kit only, does not include valve body; Compatible with R422, R422S, R433, and R433S rough valve bodies; Up to 1" rough-in adjustability; Rotational control for 2 or 3 shower outlets. material: Stamped brass escutcheon, Zinc handle, Brass valve adapter

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFT455430.pdfData sheet

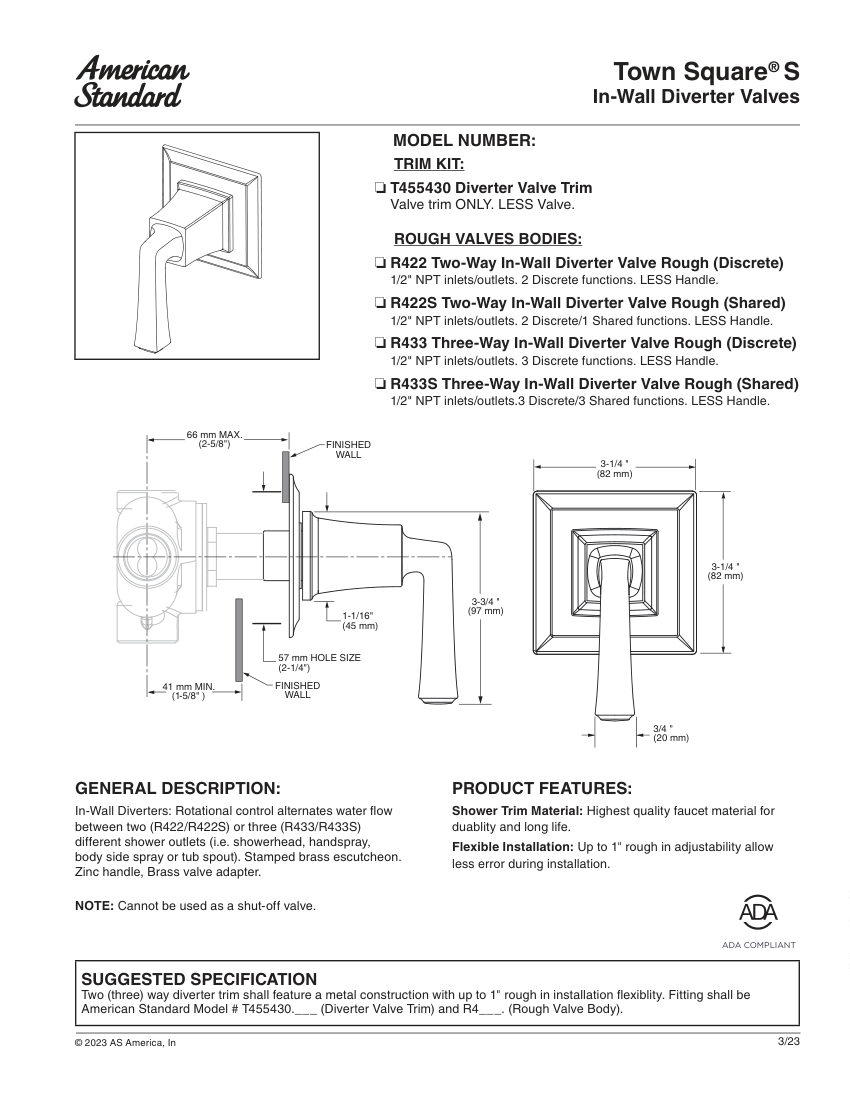

American Standard T455430 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
T455430
Product type
Plumbing Fixtures
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberT455430
DescriptionAmerican Standard In-Wall Diverter Valve Trim Kit (Town Square® S). Model T455430. Trim kit only, does not include valve body; Compatible with R422, R422S, R433, and R433S rough valve bodies; Up to 1" rough-in adjustability; Rotational control for 2 or 3 shower outlets. material: Stamped brass escutcheon, Zinc handle, Brass valve adapter
Connection size1/2" NPT
End connectionNPT
MountingIn-Wall
Dimensions57 mm (2-1/4") hole size, 66 mm (2-5/8") max projection
ComplianceASME A112.18.1, CSA B125.1, ADA, EPA WaterSense.

Also cataloged as: T455430.GN0, T455430.002, T455430.013, T455430.278, T455430.295, T455430.243
