DIV 22 · PLUMBINGSHOWERSCUT SHEET INDEXED

American StandardSeva Bath/Shower Trim KitsT480500

American Standard Pressure Balance Bath/Shower Trim Kit and Rough Valve (Bath/Shower Fitting). Model T480.500, T480.501, T480.502, R120, R120SS, R125, R125SS, R127, R127SS. Washerless 47mm ceramic disc valve cartridge; Pressure balancing cartridge maintains constant output temperature; Adjustable hot limit safety stop to reduce scalding risk; Back-to-back capability allows quick reversal of hot and cold. material: Cast brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFT480500.pdfData sheet

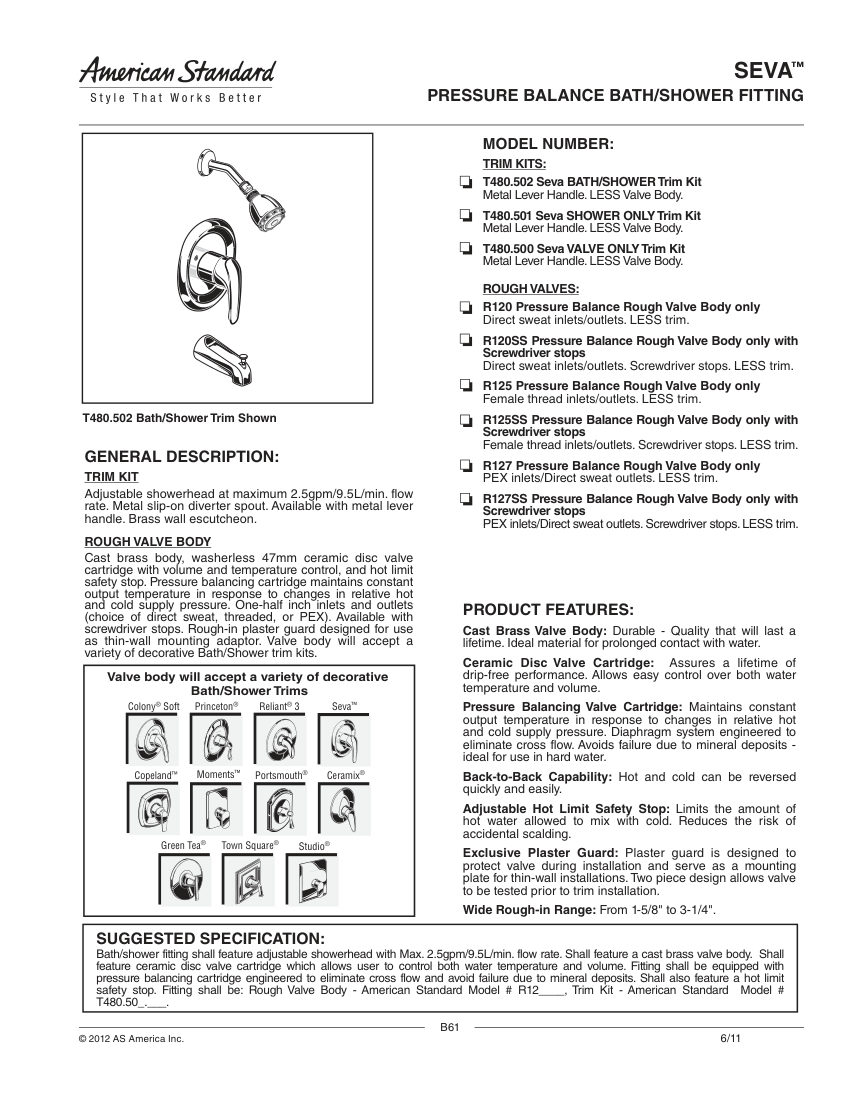

American Standard T480500 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
T480500
Product type
Showers
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberT480500
DescriptionAmerican Standard Pressure Balance Bath/Shower Trim Kit and Rough Valve (Bath/Shower Fitting). Model T480.500, T480.501, T480.502, R120, R120SS, R125, R125SS, R127, R127SS. Washerless 47mm ceramic disc valve cartridge; Pressure balancing cartridge maintains constant output temperature; Adjustable hot limit safety stop to reduce scalding risk; Back-to-back capability allows quick reversal of hot and cold. material: Cast brass
Connection size1/2 inch
End connectionDirect sweat, female thread, or PEX
Flow RateMax 2.5 gpm / 9.5 L/min
MountingThin-wall mounting adaptor / Plaster guard; dim

Also cataloged as: T480500.002, T480500.295
