DIV 22 · PLUMBINGSHOWERSCUT SHEET INDEXED

American StandardSeva FloWise Bath/Shower Trim KitT480507

American Standard Pressure Balance Bath/Shower Trim Kit (Bath/Shower Fitting). Model T480.507. FloWise showerhead saves 40% water usage; Washerless 47mm ceramic disc valve cartridge; Pressure balancing cartridge maintains constant output temperature; Includes adjustable hot limit safety stop. material: Cast brass body, metal lever handle

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFT480507.pdfData sheet

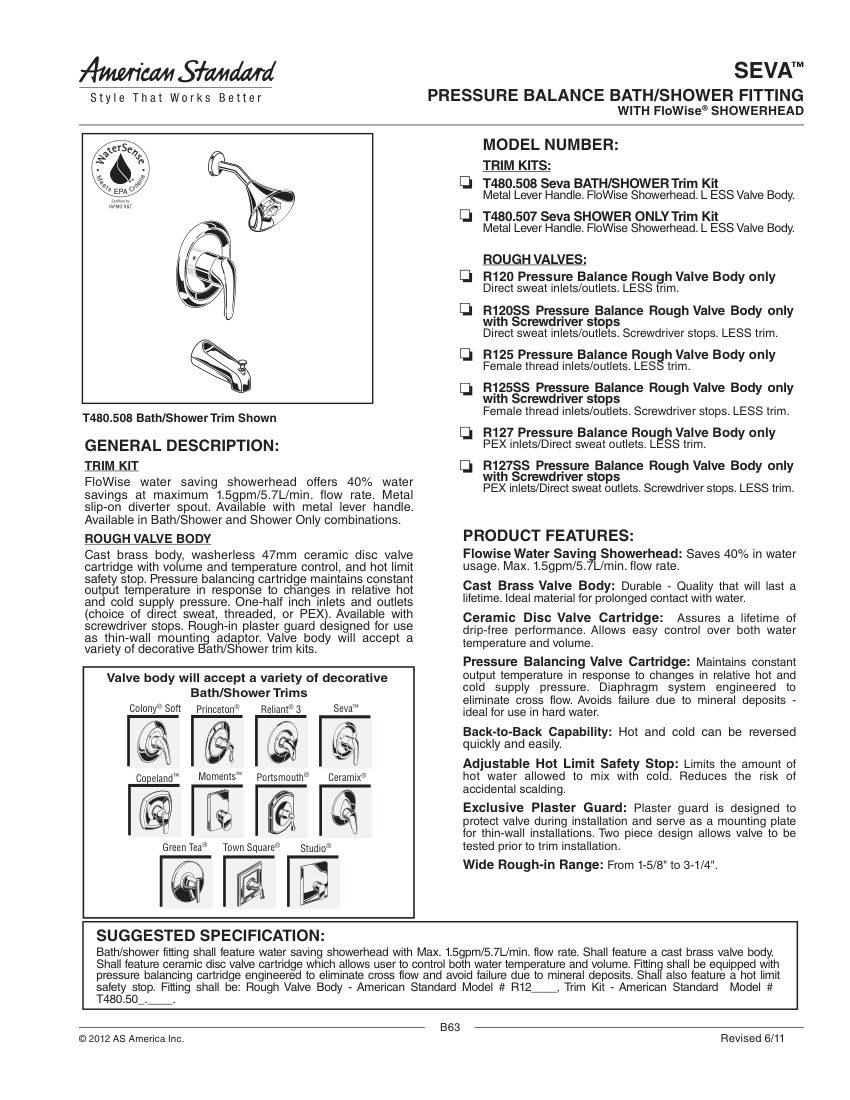

American Standard T480507 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
T480507
Product type
Showers
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberT480507
DescriptionAmerican Standard Pressure Balance Bath/Shower Trim Kit (Bath/Shower Fitting). Model T480.507. FloWise showerhead saves 40% water usage; Washerless 47mm ceramic disc valve cartridge; Pressure balancing cartridge maintains constant output temperature; Includes adjustable hot limit safety stop. material: Cast brass body, metal lever handle
Connection size1/2 inch inlets and outlets
End connectionDirect sweat, threaded, or PEX (rough valve dependent)
Flow RateMax 1.5 gpm / 5.7 L/min
MountingThin-wall mounting adaptor (plaster guard)
DimensionsRough-in range 1-5/8" to 3-1/4".

Also cataloged as: T480507.002, T480507.295
