DIV 22 · PLUMBINGSHOWERSCUT SHEET INDEXED

American StandardPrinceton Bath/Shower Trim Kits -- 1.5 gpmT508508

American Standard Pressure Balance Bath/Shower Trim Kit (Bath/Shower Fitting). Model T508.508. FloWise water saving showerhead offers 40% savings; Washerless 47mm ceramic disc valve cartridge; Pressure balancing cartridge maintains constant output temperature; Adjustable hot limit safety stop to reduce scalding risk. material: Cast brass body, metal lever handle

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFT508508.pdfData sheet

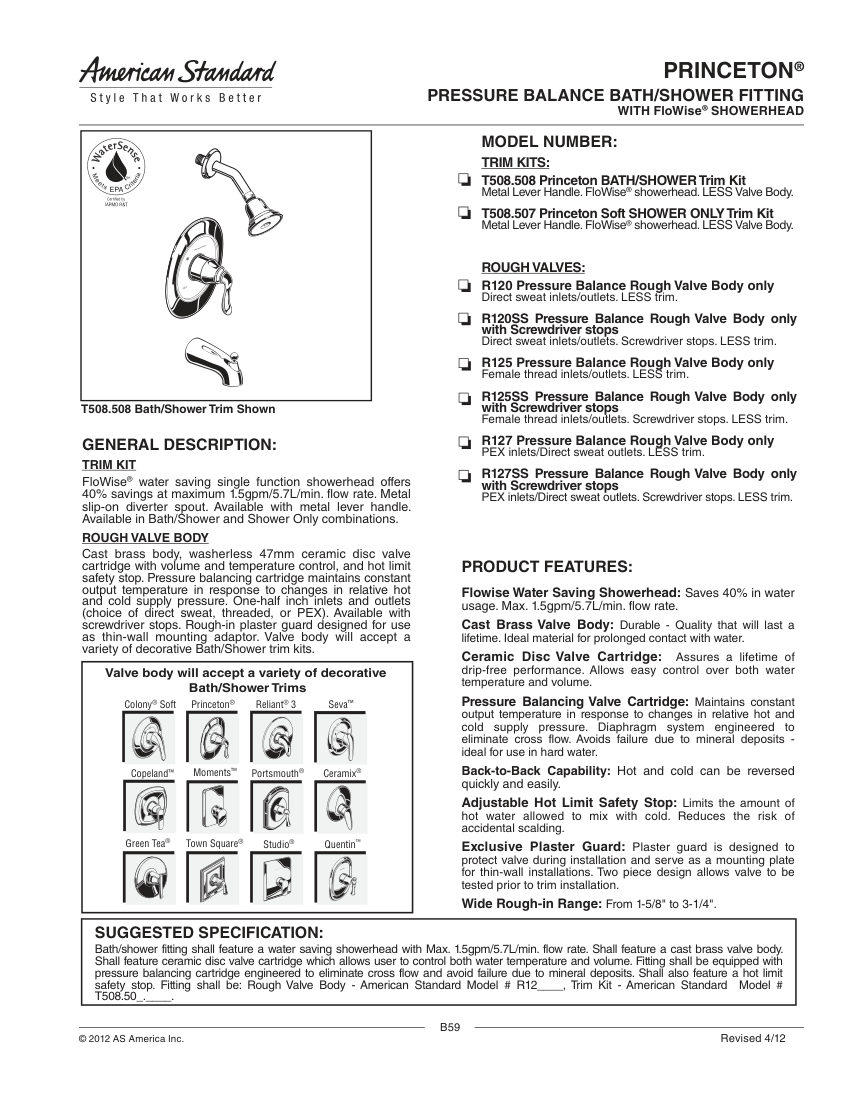

American Standard T508508 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
T508508
Product type
Showers
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberT508508
DescriptionAmerican Standard Pressure Balance Bath/Shower Trim Kit (Bath/Shower Fitting). Model T508.508. FloWise water saving showerhead offers 40% savings; Washerless 47mm ceramic disc valve cartridge; Pressure balancing cartridge maintains constant output temperature; Adjustable hot limit safety stop to reduce scalding risk. material: Cast brass body, metal lever handle
Connection size1/2 inch inlets and outlets
End connectionDirect sweat, threaded, or PEX (valve dependent)
Flow RateMax 1.5 gpm / 5.7 L/min
MountingRough-in plaster guard, thin-wall mounting adaptor
DimensionsWide rough-in r

Also cataloged as: T508508.002, T508508.224, T508508.295
