DIV 22 · PLUMBINGBATHTUBSCUT SHEET INDEXED

American StandardPrinceton Deck-Mount Bathtub Faucet Trim KitT508900

American Standard Deck-Mount Bathtub Filler (Bathtub Faucet). Model R800 / R810. Washerless 1/4 turn ceramic disc valve cartridges; R800 features separate brass and 1/2" copper waterway for adjustable installations; R810 features 10" fixed copper to copper connection; Accommodates finished deck variability up to 1" thick. material: Brass, Copper

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFT508900.pdfData sheet

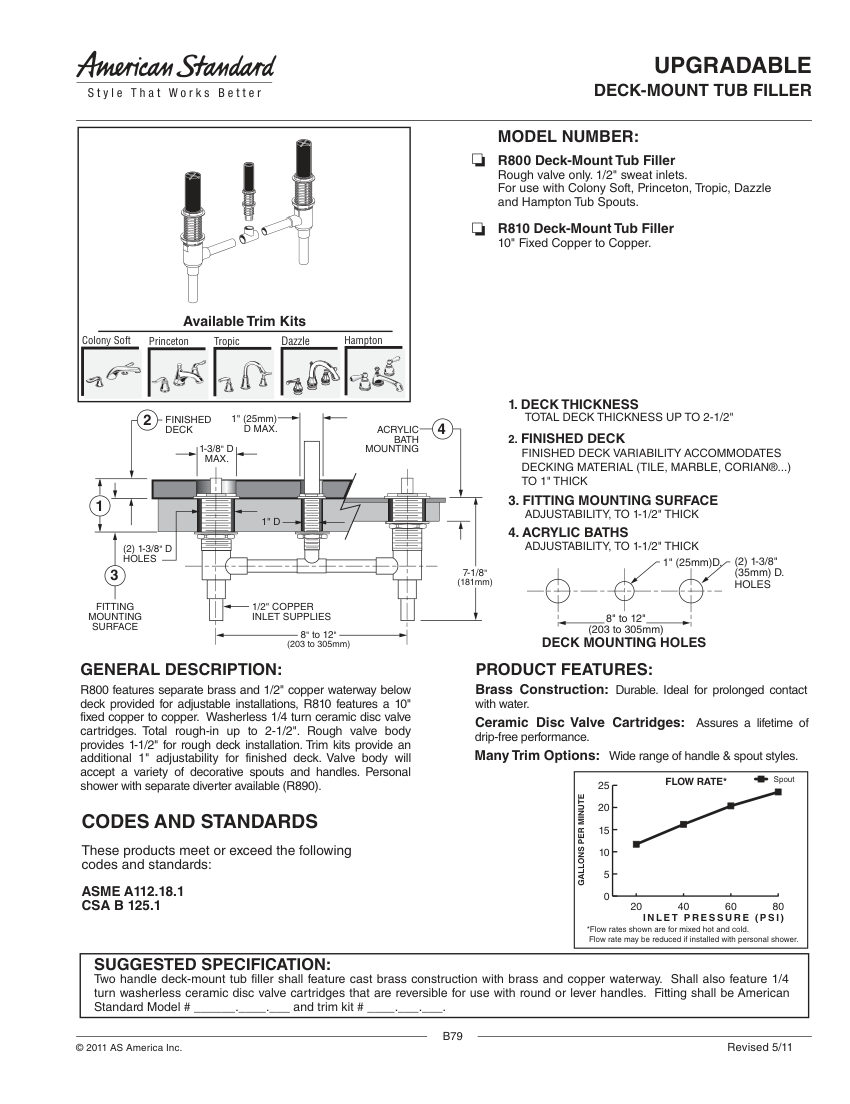

American Standard T508900 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
T508900
Product type
Bathtubs
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberT508900
DescriptionAmerican Standard Deck-Mount Bathtub Filler (Bathtub Faucet). Model R800 / R810. Washerless 1/4 turn ceramic disc valve cartridges; R800 features separate brass and 1/2" copper waterway for adjustable installations; R810 features 10" fixed copper to copper connection; Accommodates finished deck variability up to 1" thick. material: Brass, Copper
Connection size1/2"
End connectionSweat inlets (R800), Fixed Copper to Copper (R810)
Flow RateUp to 25 GPM (mixed hot and cold)
MountingDeck-Mount
DimensionsRough-in up to 2-1/2"; Deck holes 1-3/8" D; Spacing 8" to 12".

Also cataloged as: T508900.002, T508900.224, T508900.295
