American StandardTown Square 2-Handle Thermostatic Shower Valve Trim KitT555740

American Standard Two-Handle Thermostatic Shower Valve Trim Kit (Shower Valve). Model T555.740. Wax thermostatic unit maintains constant water temperature; Maximum temperature limit is 112°F with adjustable safety stop; Features twin ceramic disc valve cartridges for volume control; Back-to-back capable with spring-loaded check valves to prevent cross flow. material: Cast brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFT555740.pdfData sheet

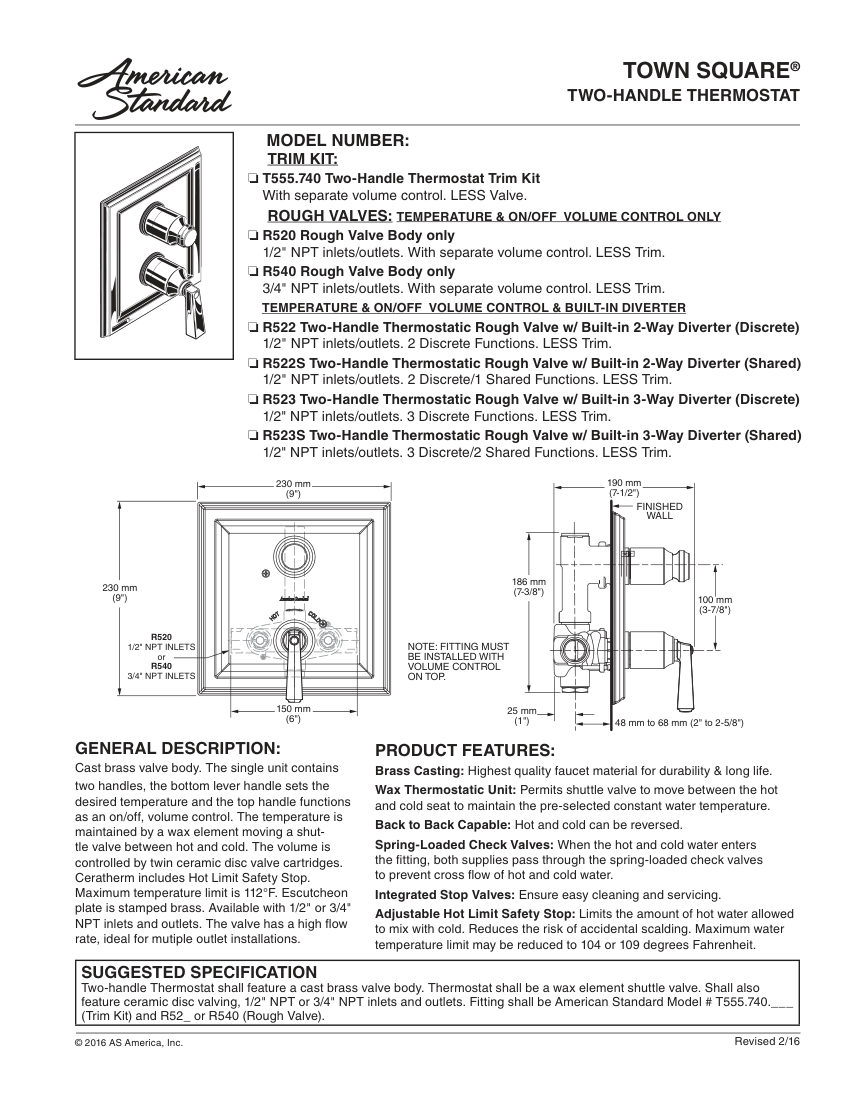

American Standard T555740 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
T555740
Product type
Showers
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberT555740
DescriptionAmerican Standard Two-Handle Thermostatic Shower Valve Trim Kit (Shower Valve). Model T555.740. Wax thermostatic unit maintains constant water temperature; Maximum temperature limit is 112°F with adjustable safety stop; Features twin ceramic disc valve cartridges for volume control; Back-to-back capable with spring-loaded check valves to prevent cross flow. material: Cast brass
Connection size1/2" NPT or 3/4" NPT
End connectionNPT
Flow RateHigh flow rate
MountingRough valve body
Dimensions230 mm (9") x 190 mm (7-1/2").

Also cataloged as: T555740.002, T555740.224, T555740.295
