Broan Infrared Bulb Heater (Bathroom Ventilation). Model 161, 162. Uses 250W BR40-size infrared bulb; Sound level no greater than 4.0 Sones (Model 162); Total connected load 300W (Model 162); Heater and ventilator operate separately or in combination (Model 162). material: Corrosion resistant steel housing, polymeric grille

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF161.pdfData sheet

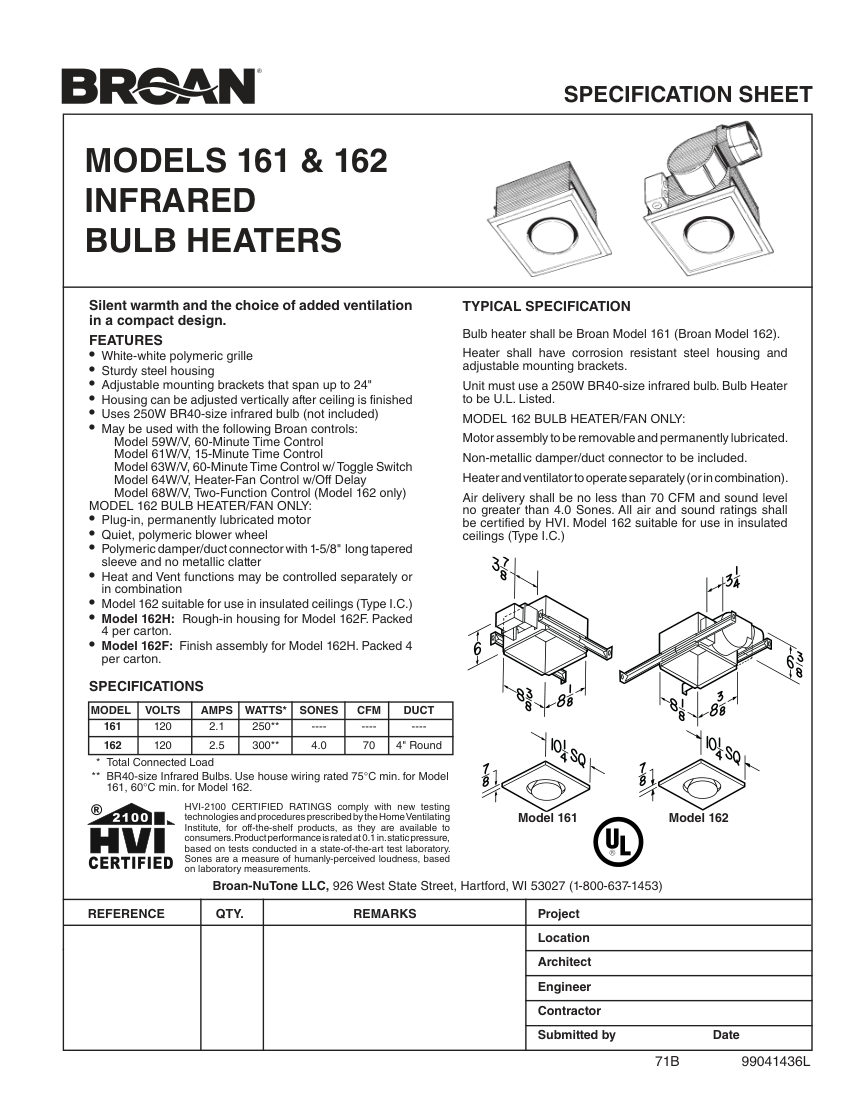

Broan 161 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
161
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog number161
DescriptionBroan Infrared Bulb Heater (Bathroom Ventilation). Model 161, 162. Uses 250W BR40-size infrared bulb; Sound level no greater than 4.0 Sones (Model 162); Total connected load 300W (Model 162); Heater and ventilator operate separately or in combination (Model 162). material: Corrosion resistant steel housing, polymeric grille
Connection size4" Round duct (Model 162)
End connectionPolymeric damper/duct connector
Flow Rate70 CFM (Model 162)
FinishWhite-white
MountingAdjustable brackets, suitable for insulated ceilings (Type I.C.).

Also cataloged as: 162
