Broan 504
Ventilation by Broan. Cut sheet, part numbers and a one-click submittal — indexed and ready in Submittal.app.

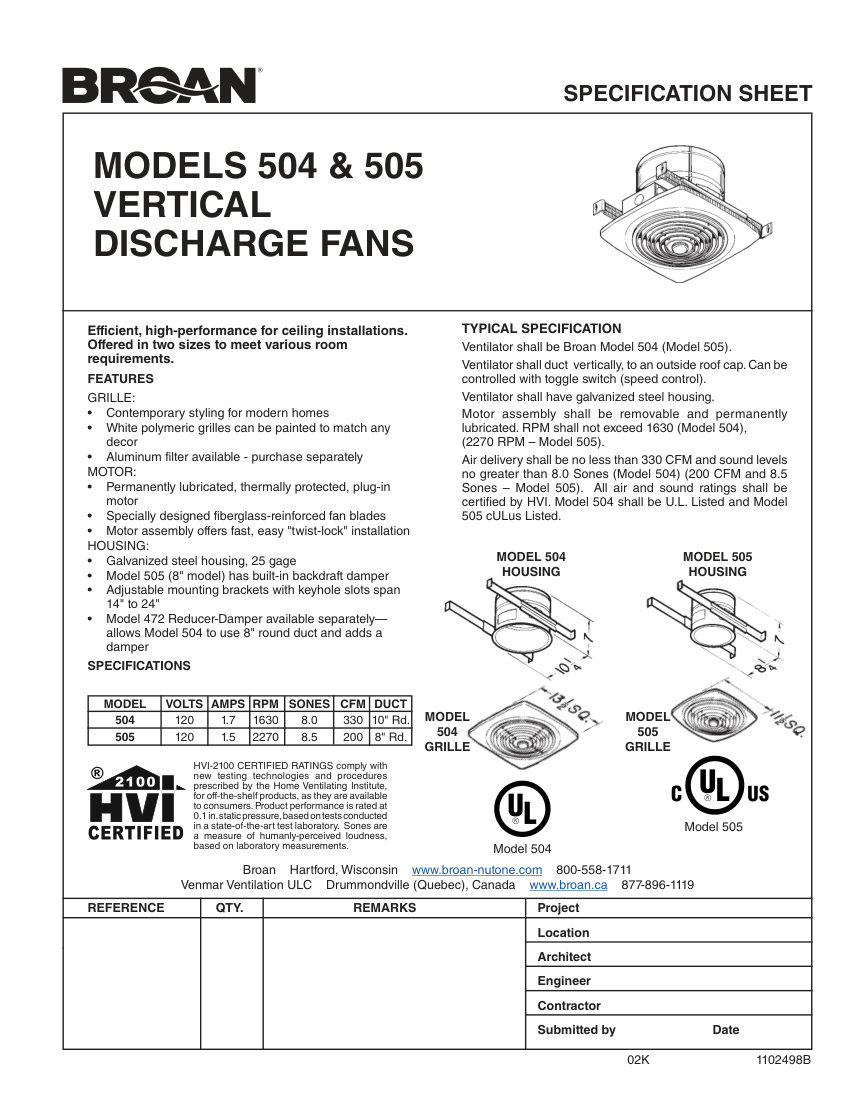

Broan Vertical Discharge Fan (Ventilation). Model 504 & 505. Permanently lubricated, thermally protected plug-in motor
Build a submittal around the Broan 504 in minutes — describe the job or paste your schedule and the agent pulls the current cut sheet into a formatted package you can share for review and get quoted, fast.
Product details
| RPM | 1630 (Model 504), 2270 (Model 505) |
|---|---|
| Sound levels | 8.0 Sones (Model 504), 8.5 Sones (Model 505); Model 505 includes built-in backdraft damper. material: Galvanized steel housing, white polymeric grille, fiberglass-reinforced fan blades |
| Connection size | 10" Rd. (Model 504), 8" Rd. (Model 505) |
| End connection | Vertical duct to outside roof cap |
| Flow Rate | 330 CFM (Model 504), 200 CFM (Model 505) |
| Finish | White polymeric grille (paintable) |
| Mounting | Ceiling installation, adju |
Part numbers / catalog
