DIV 23 · HVACVENTILATIONCUT SHEET INDEXED

BroanVenmar AVS® S Series™ ERV 110 CFM 68% SRE Side ports41708

Broan ERV (Energy Recovery Ventilator). Model Venmar AVS S10 ERV ECM (Part no. 41708). Two external rotor ECM motors with backward blowers; Crossflow aluminum-polymerized paper ERV core with 68% SRE; Two washable 20 ppi reticulated polyester urethane foam filters; Integrated balancing/backdraft dampers in cold supply and exhaust ports. material: 22 ga. galvanized steel housing, expanded polystyrene insulation, aluminum-polymerized paper core

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF41708.pdfData sheet

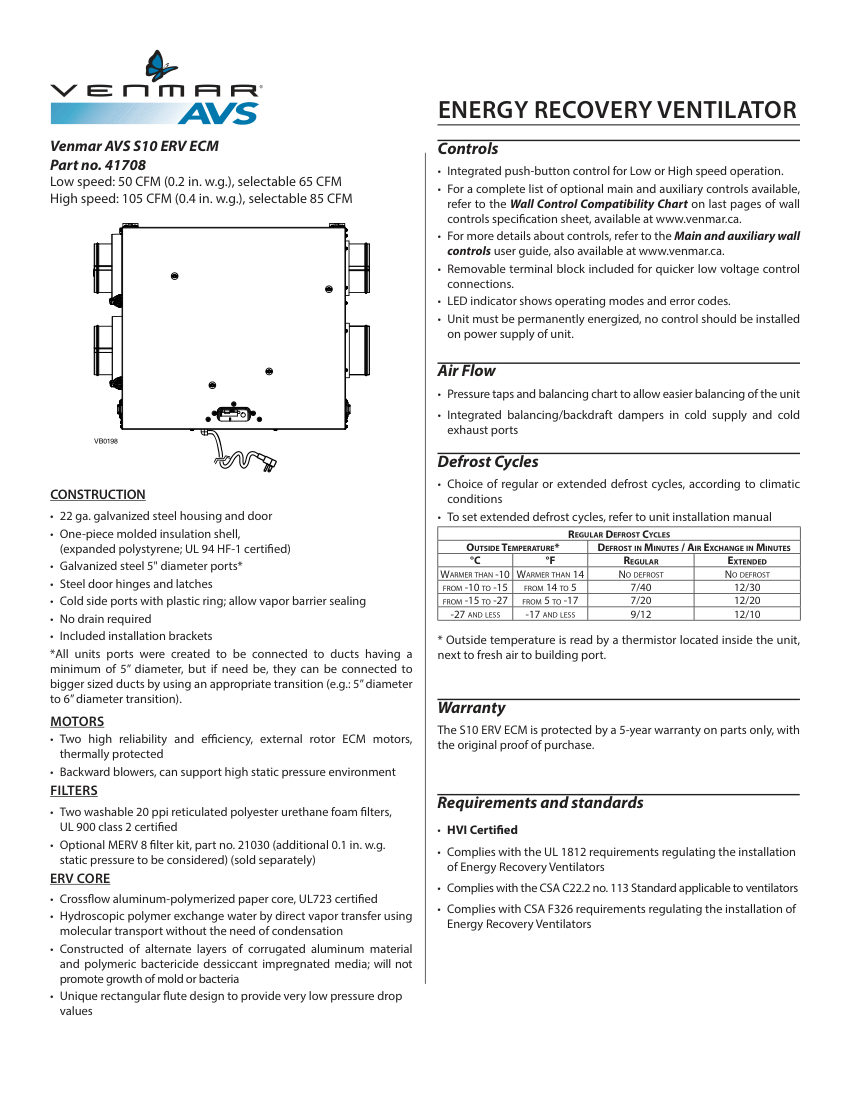

Broan 41708 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
41708
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog number41708
DescriptionBroan ERV (Energy Recovery Ventilator). Model Venmar AVS S10 ERV ECM (Part no. 41708). Two external rotor ECM motors with backward blowers; Crossflow aluminum-polymerized paper ERV core with 68% SRE; Two washable 20 ppi reticulated polyester urethane foam filters; Integrated balancing/backdraft dampers in cold supply and exhaust ports. material: 22 ga. galvanized steel housing, expanded polystyrene insulation, aluminum-polymerized paper core
Connection size5" diameter ports
End connectionSide ports
Pressure RatingLow speed: 0.2 in. w.g., High speed: 0.4 in. w.g.
Flow RateLow speed: 50
