DIV 23 · HVACVENTILATIONCUT SHEET INDEXED

Broan41800 ERV 108 CFM 65% SRE Side ports41800

Broan ERV (Energy Recovery Ventilator). Model 41800. Two external rotor PSC motors with backward blowers; Crossflow aluminum-polymerized paper ERV core with direct vapor transfer; Two washable 20 ppi reticulated polyester urethane foam filters; Integrated balancing and backdraft dampers. material: Galvanized steel housing, expanded polystyrene insulation, aluminum-polymerized paper core

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF41800.pdfData sheet

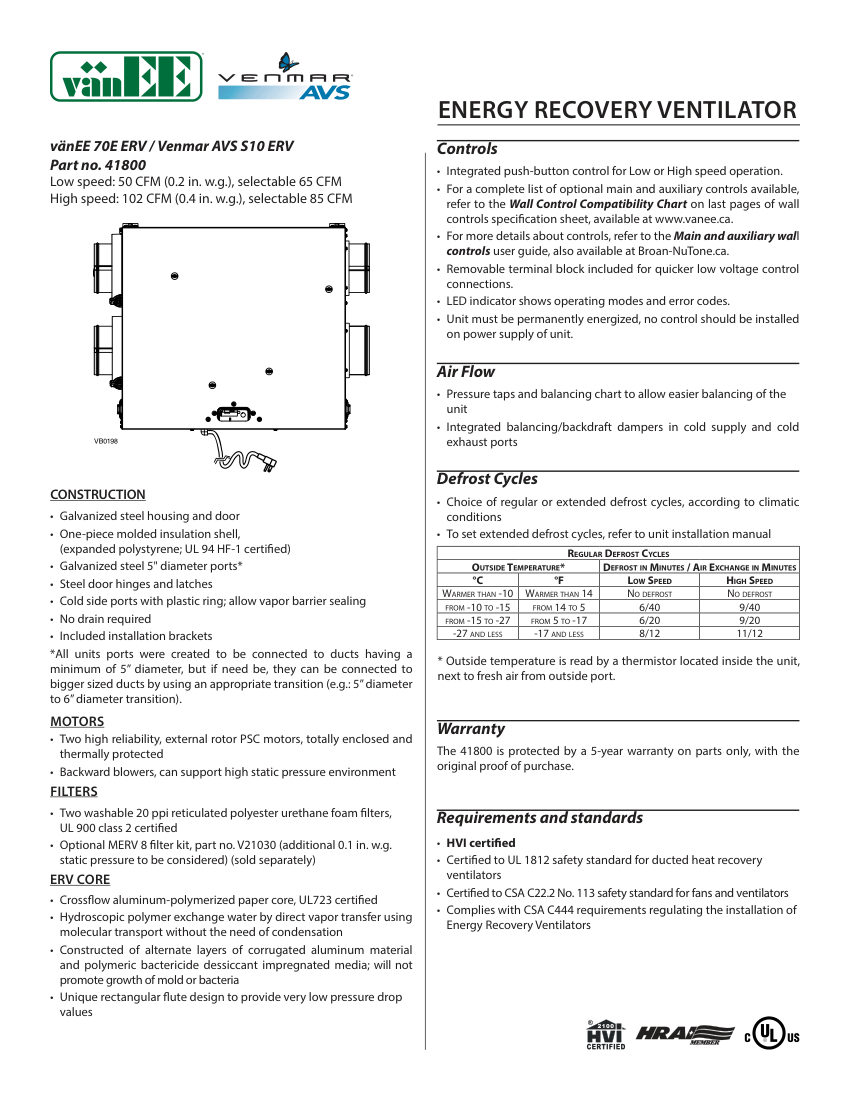

Broan 41800 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
41800
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog number41800
DescriptionBroan ERV (Energy Recovery Ventilator). Model 41800. Two external rotor PSC motors with backward blowers; Crossflow aluminum-polymerized paper ERV core with direct vapor transfer; Two washable 20 ppi reticulated polyester urethane foam filters; Integrated balancing and backdraft dampers. material: Galvanized steel housing, expanded polystyrene insulation, aluminum-polymerized paper core
Connection size5" diameter ports
End connectionSide ports
Pressure RatingLow speed: 0.2 in. w.g., High speed: 0.4 in. w.g.
Flow RateLow speed: 50 CFM (selectable 65 CFM), High speed: 102 CFM (selectable
