Broan 505N
Ventilation by Broan. Cut sheet, part numbers and a one-click submittal — indexed and ready in Submittal.app.

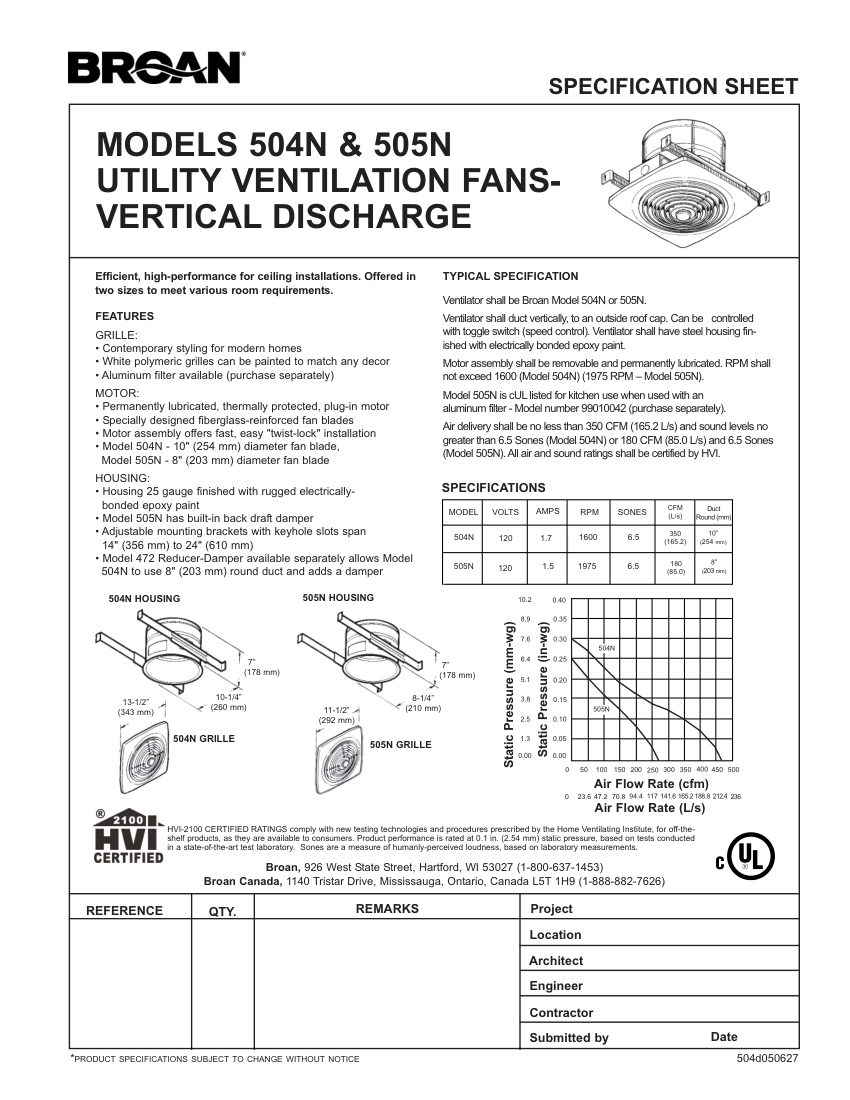

Broan Ceiling Ventilation Fan (Utility Ventilation Fan). Model 504N, 505N. Permanently lubricated, thermally protected plug-in motor
Build a submittal around the Broan 505N in minutes — describe the job or paste your schedule and the agent pulls the current cut sheet into a formatted package you can share for review and get quoted, fast.
Product details
| RPM | 1600 (504N), 1975 (505N) |
|---|---|
| Sound level | 6.5 Sones for both models; 505N includes built-in back draft damper. material: Steel housing with electrically bonded epoxy paint, fiberglass-reinforced fan blades |
| Connection size | 10" (254 mm) round duct (504N), 8" (203 mm) round duct (505N) |
| End connection | Vertical discharge |
| Flow Rate | 350 CFM (165.2 L/s) (504N), 180 CFM (85.0 L/s) (505N) |
| Finish | White polymeric grille, steel housing with epoxy paint |
| Mounting | Ceil |
Part numbers / catalog
