DIV 23 · HVACVENTILATIONCUT SHEET INDEXED
BroanBroan273003
Broan Downdraft Blower System (Broan Eclipse). Model 2730 & 2736. Max blower CFM: 600
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Broan
- Catalog no.
- 273003
- Product type
- Ventilation
- MasterFormat
- 23

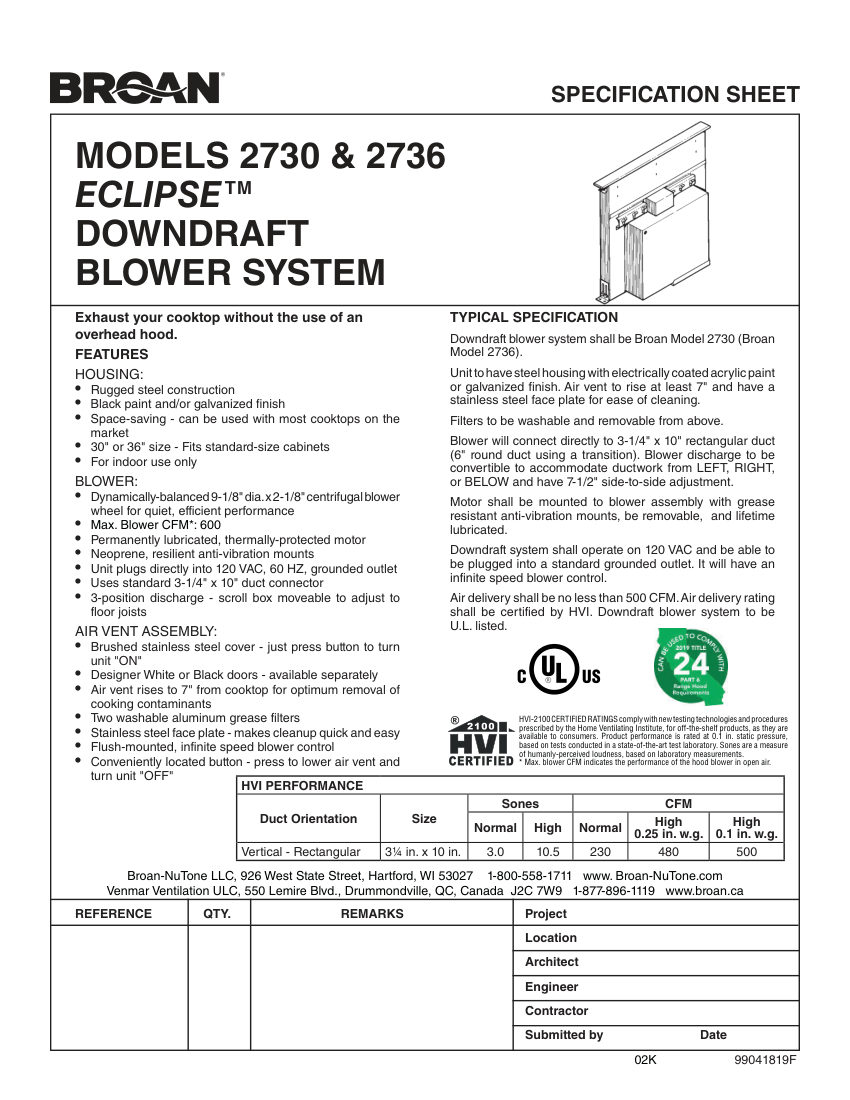

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | 273003 |
|---|---|
| Description | Broan Downdraft Blower System (Broan Eclipse). Model 2730 & 2736. Max blower CFM: 600 |
| Certified air delivery | 500 CFM at 0.1 in. w.g. |
| Duct connection | 3-1/4" x 10" rectangular |
| Voltage | 120 VAC, 60 HZ. material: Steel housing, stainless steel face plate, aluminum grease filters |
| Connection size | 3-1/4" x 10" rectangular duct (6" round with transition) |
| End connection | 3-position discharge (Left, Right, Below) |
| Flow Rate | Max 600 CFM; Certified 500 CFM at 0.1 in. w.g. |
| Finish | Black paint or galvanized finish |
| Mounting | Flush-mounted, anti-vibration mounts. |
Also cataloged as: 273603
