DIV 23 · HVACVENTILATIONCUT SHEET INDEXED

BroanBroan® 21402101

Broan Ducted Range Hood (Range Hood). Model 40000. Two-speed fan with rocker-type switches; Max blower CFM 210 (open air); Sound levels 8.0 sones (vertical) and 6.5 sones (horizontal); Permanently lubricated motor, RPM not to exceed 2795. material: Aluminum filter, Polymeric blade and light lens

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF402101.pdfData sheet

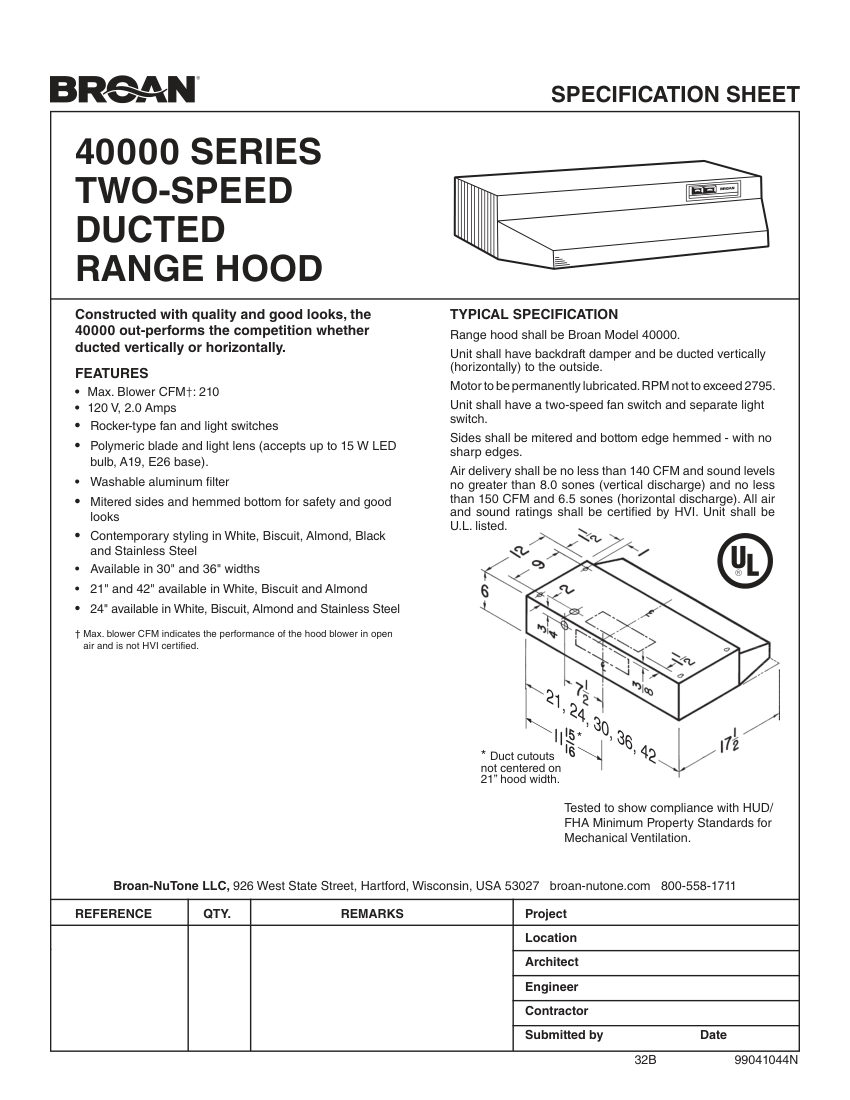

Broan 402101 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
402101
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog number402101
DescriptionBroan Ducted Range Hood (Range Hood). Model 40000. Two-speed fan with rocker-type switches; Max blower CFM 210 (open air); Sound levels 8.0 sones (vertical) and 6.5 sones (horizontal); Permanently lubricated motor, RPM not to exceed 2795. material: Aluminum filter, Polymeric blade and light lens
Connection size3¼ in. x 10 in. duct
End connectionVertical or Horizontal ducted
Flow Rate140 CFM (Vertical), 150 CFM (Horizontal)
FinishWhite, Biscuit, Almond, Black, Stainless Steel
MountingWall mounted.

Also cataloged as: 402102, 402401, 402402, 403002, 403004, 403023, 403601, 403602, 403604, 403623, 404201
