BroanVenmar AVS® S Series™ ERV 108 CFM 65% SRE Side ports41700

Broan ERV (Energy Recovery Ventilator). Model AVS S10. Part no. 41700; Two external rotor PSC motors; Washable 20 ppi foam filters (UL 900 class 2); Crossflow aluminum-polymerized paper ERV core. material: 22 ga. galvanized steel housing, expanded polystyrene insulation, aluminum-polymerized paper core

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF41700.pdfData sheet

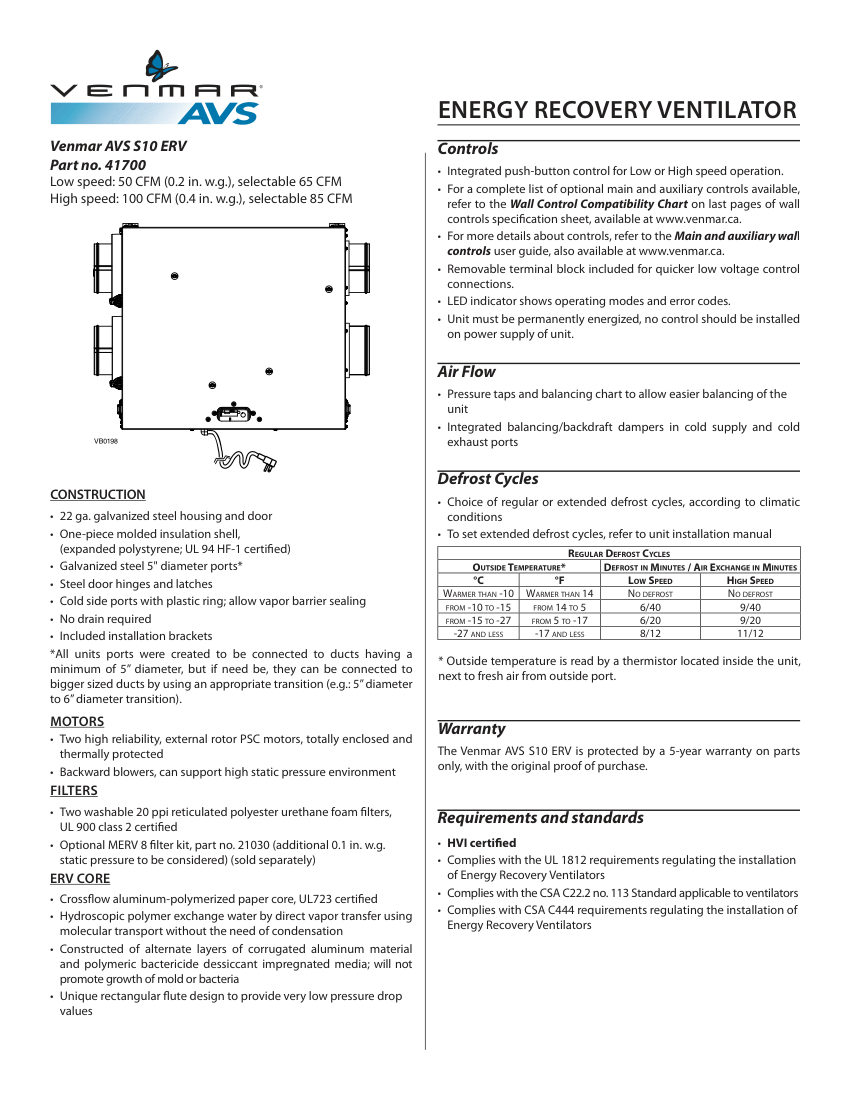

Broan 41700 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
41700
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog number41700
DescriptionBroan ERV (Energy Recovery Ventilator). Model AVS S10. Part no. 41700; Two external rotor PSC motors; Washable 20 ppi foam filters (UL 900 class 2); Crossflow aluminum-polymerized paper ERV core. material: 22 ga. galvanized steel housing, expanded polystyrene insulation, aluminum-polymerized paper core
Connection size5" diameter ports
End connectionSide ports
Pressure RatingLow speed: 0.2 in. w.g., High speed: 0.4 in. w.g.
Flow RateLow speed: 50/65 CFM, High speed: 100/85 CFM
MountingIncluded installation brackets.

Also cataloged as: 41701
