BroanVenmar AVS® S Series™ ERV 117 CFM 65% SRE Side ports41702

Broan ERV (Energy Recovery Ventilator). Model AVS S10 ERVplus. Part no. 41702; Homeshield defrosting system with 3 modes; Two washable 20 ppi reticulated polyester urethane foam filters; Crossflow aluminum-polymerized paper core. material: 22 ga. galvanized steel housing, 22 ga. pre-painted steel door, expanded polystyrene insulation

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF41702.pdfData sheet

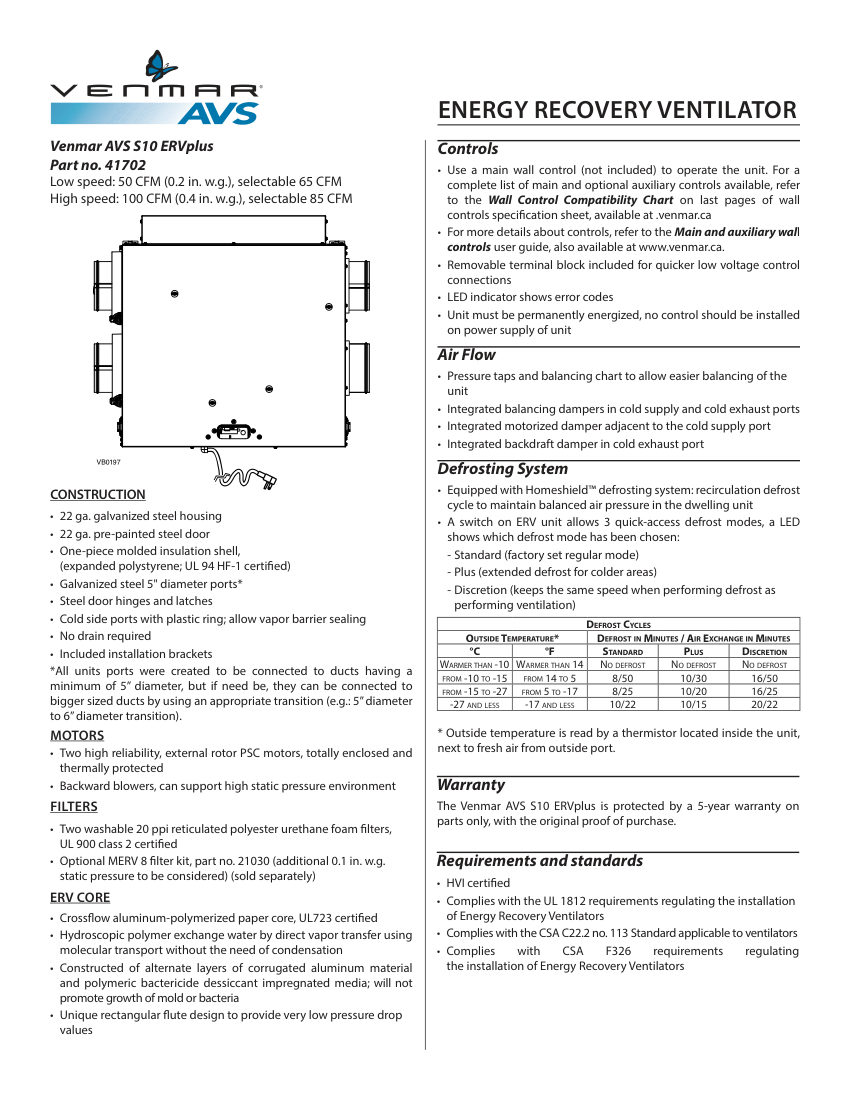

Broan 41702 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
41702
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog number41702
DescriptionBroan ERV (Energy Recovery Ventilator). Model AVS S10 ERVplus. Part no. 41702; Homeshield defrosting system with 3 modes; Two washable 20 ppi reticulated polyester urethane foam filters; Crossflow aluminum-polymerized paper core. material: 22 ga. galvanized steel housing, 22 ga. pre-painted steel door, expanded polystyrene insulation
Connection size5" diameter ports
End connectionSide ports
Pressure RatingLow speed: 0.2 in. w.g., High speed: 0.4 in. w.g.
Flow RateLow speed: 50 CFM (selectable 65 CFM), High speed: 100 CFM (selectable 85 CFM)
FinishPre-painted steel door.
