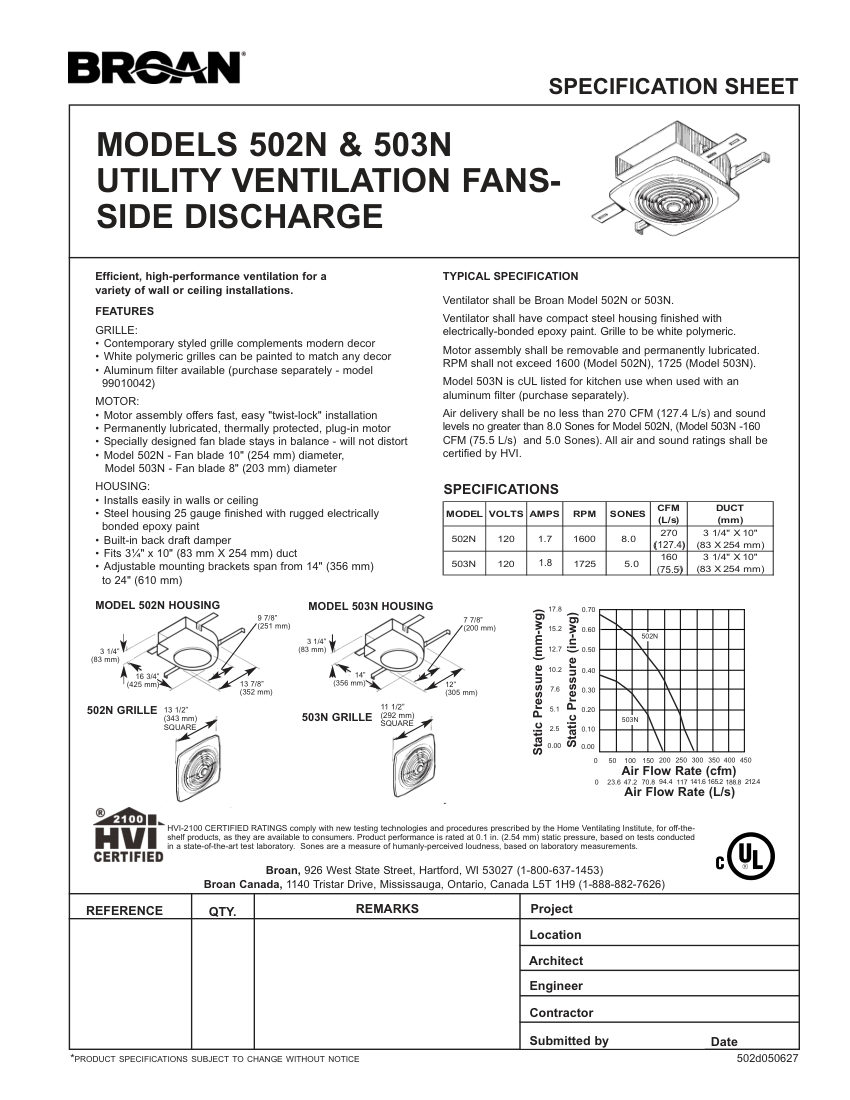

BroanDISCONTINUED: Broan® 10502N
Broan Utility Ventilation Fan (Ventilation). Model 502N, 503N. Permanently lubricated, thermally protected plug-in motor; Built-in back draft damper
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Broan
- Catalog no.
- 502N
- Product type
- Ventilation
- MasterFormat
- 23
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | 502N |
|---|---|
| Description | Broan Utility Ventilation Fan (Ventilation). Model 502N, 503N. Permanently lubricated, thermally protected plug-in motor; Built-in back draft damper |
| RPM | 1600 (502N), 1725 (503N) |
| Sound levels | 8.0 Sones (502N), 5.0 Sones (503N). material: Steel housing, white polymeric grille |
| Connection size | 3 1/4" x 10" (83 mm x 254 mm) duct |
| End connection | Side discharge |
| Flow Rate | 270 CFM (127.4 L/s) for 502N; 160 CFM (75.5 L/s) for 503N |
| Finish | Electrically-bonded epoxy paint |
| Mounting | Wall or ceiling, adjustable brackets 14" to 24". |
Also cataloged as: 503N
