DIV 23 · HVACVENTILATIONCUT SHEET INDEXED

Broan**DISCONTINUED** Broan® 290 CFM Through508

Broan Wall Fan (Ventilation). Model 508, 509, 509S. Permanently lubricated, thermally protected plug-in motor; Built-in backdraft damper; Model 509S features built-in rotary switch

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF508.pdfData sheet

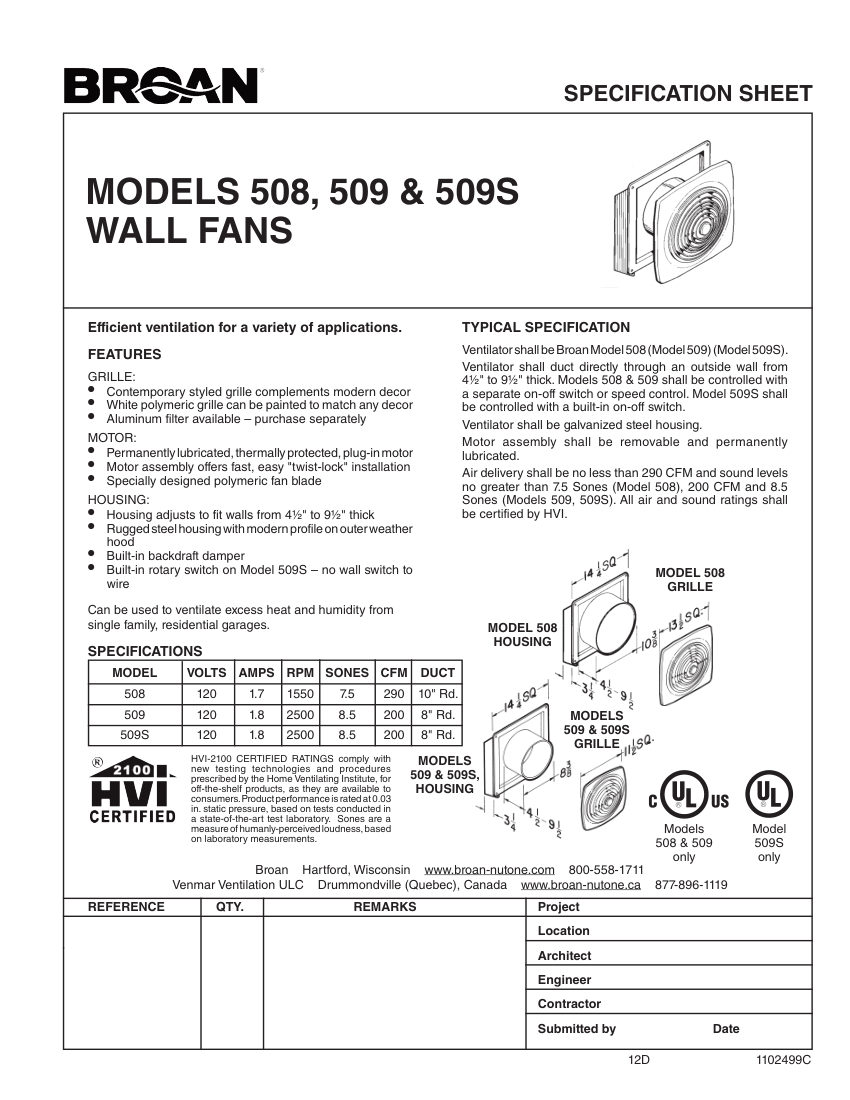

Broan 508 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
508
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog number508
DescriptionBroan Wall Fan (Ventilation). Model 508, 509, 509S. Permanently lubricated, thermally protected plug-in motor; Built-in backdraft damper; Model 509S features built-in rotary switch
Sound levels7.5 Sones (Model 508), 8.5 Sones (Models 509, 509S). material: Galvanized steel housing, white polymeric grille
Connection size10" Rd. (Model 508), 8" Rd. (Models 509, 509S)
Flow Rate290 CFM (Model 508), 200 CFM (Models 509, 509S)
FinishWhite polymeric grille (paintable)
MountingThrough-wall, fits 4½" to 9½" thick walls
ComplianceHVI-2100 Certified.

Also cataloged as: 509, 509S
