Broan508N

Broan Through Wall Ventilation Fan (Ventilation Fan). Model 508N, 509N. 270 CFM air delivery (Model 508N); 180 CFM air delivery (Model 509N); 6.0 Sones sound level (Model 508N); 6.5 Sones sound level (Model 509N). material: Steel housing, white polymeric grille

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF508N.pdfData sheet

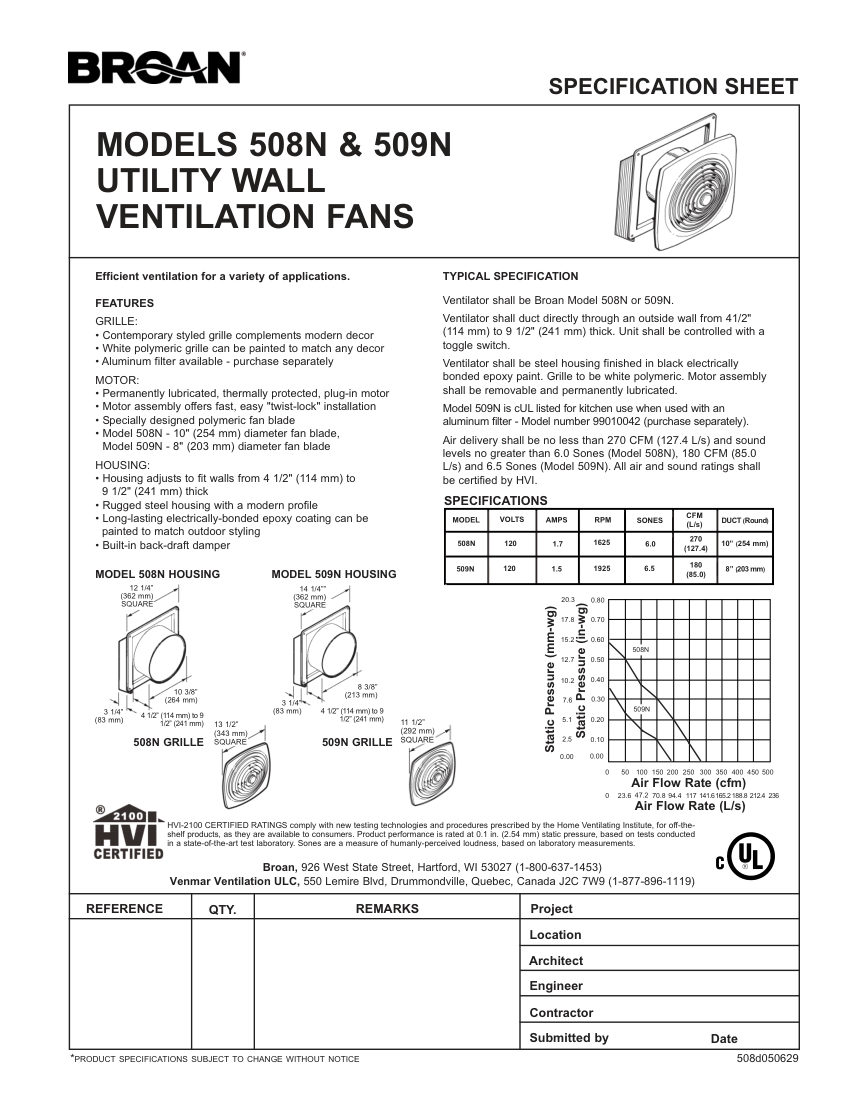

Broan 508N cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
508N
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog number508N
DescriptionBroan Through Wall Ventilation Fan (Ventilation Fan). Model 508N, 509N. 270 CFM air delivery (Model 508N); 180 CFM air delivery (Model 509N); 6.0 Sones sound level (Model 508N); 6.5 Sones sound level (Model 509N). material: Steel housing, white polymeric grille
Connection size10" (254 mm) or 8" (203 mm) duct
End connectionThrough wall
Flow Rate270 CFM (127.4 L/s) for 508N, 180 CFM (85.0 L/s) for 509N
FinishBlack electrically bonded epoxy paint (housing), White (grille)
MountingWall thickness 4 1/2" (114 mm) to 9 1/2" (241 mm).

Also cataloged as: 509N
