BroanDISCONTINUED: Broan® 10510N

Broan Utility Room-to-Room Ventilation Fan (Ventilation). Model 510N, 511N. Permanently lubricated, thermally protected plug-in motor; Built-in solid state speed control

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF510N.pdfData sheet

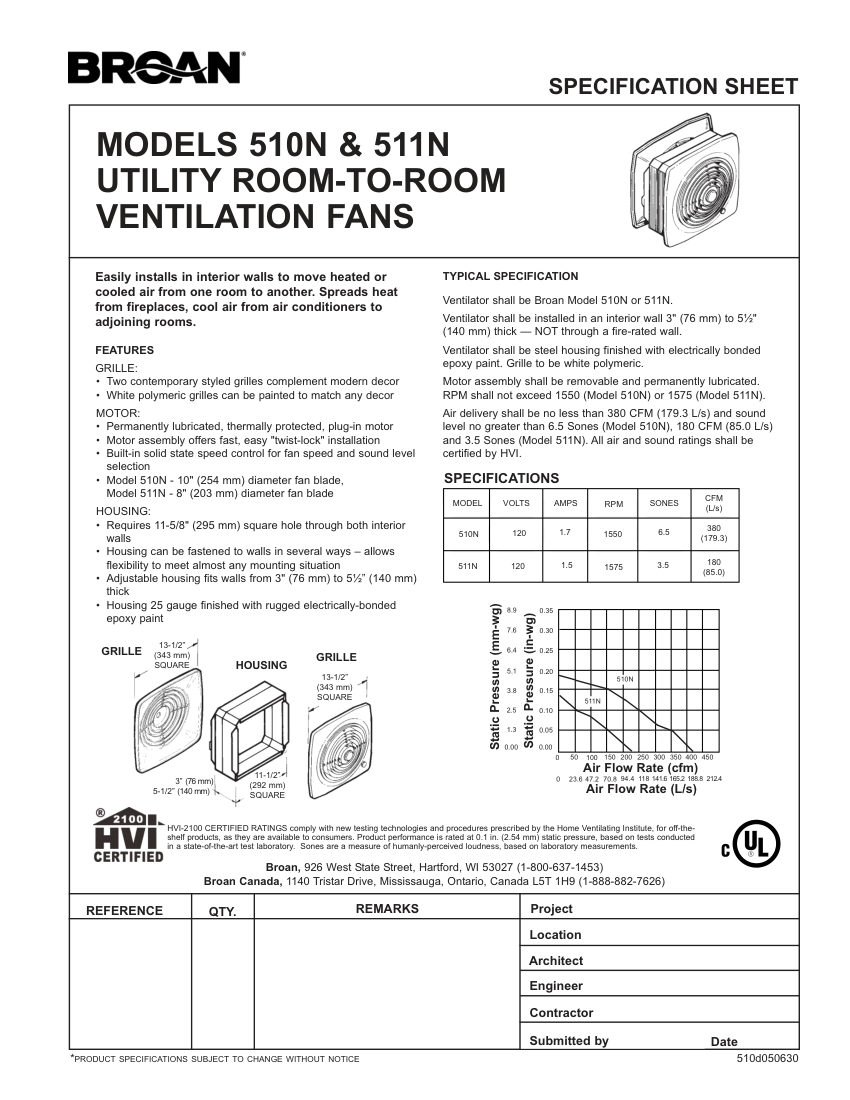

Broan 510N cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
510N
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog number510N
DescriptionBroan Utility Room-to-Room Ventilation Fan (Ventilation). Model 510N, 511N. Permanently lubricated, thermally protected plug-in motor; Built-in solid state speed control
Model 510N10" fan blade, 1550 RPM, 6.5 Sones
Model 511N8" fan blade, 1575 RPM, 3.5 Sones. material: Steel housing, white polymeric grille
Connection size11-5/8" (295 mm) square hole
Flow Rate380 CFM (179.3 L/s) for 510N, 180 CFM (85.0 L/s) for 511N
FinishElectrically bonded epoxy paint
MountingInterior wall, 3" to 5½" thick
Dimensions13-1/2" (343 mm) square grille.

Also cataloged as: 511N
