DIV 23 · HVACVENTILATIONCUT SHEET INDEXED

BroanBroan688ESL

Broan Ceiling/Wall Fan (Exhaust Fan). Model 688ESL. Integrated LED lighting with 3000K color temperature and 750 lumens; Sound level no greater than 2.0 Sones; Suitable for use over tub or in shower enclosure when installed in a GFCI protected branch circuit; Plug-in, permanently lubricated motor with snap in/out assembly. material: 26 gauge galvanized steel housing, polypropylene impeller

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF688ESL.pdfData sheet

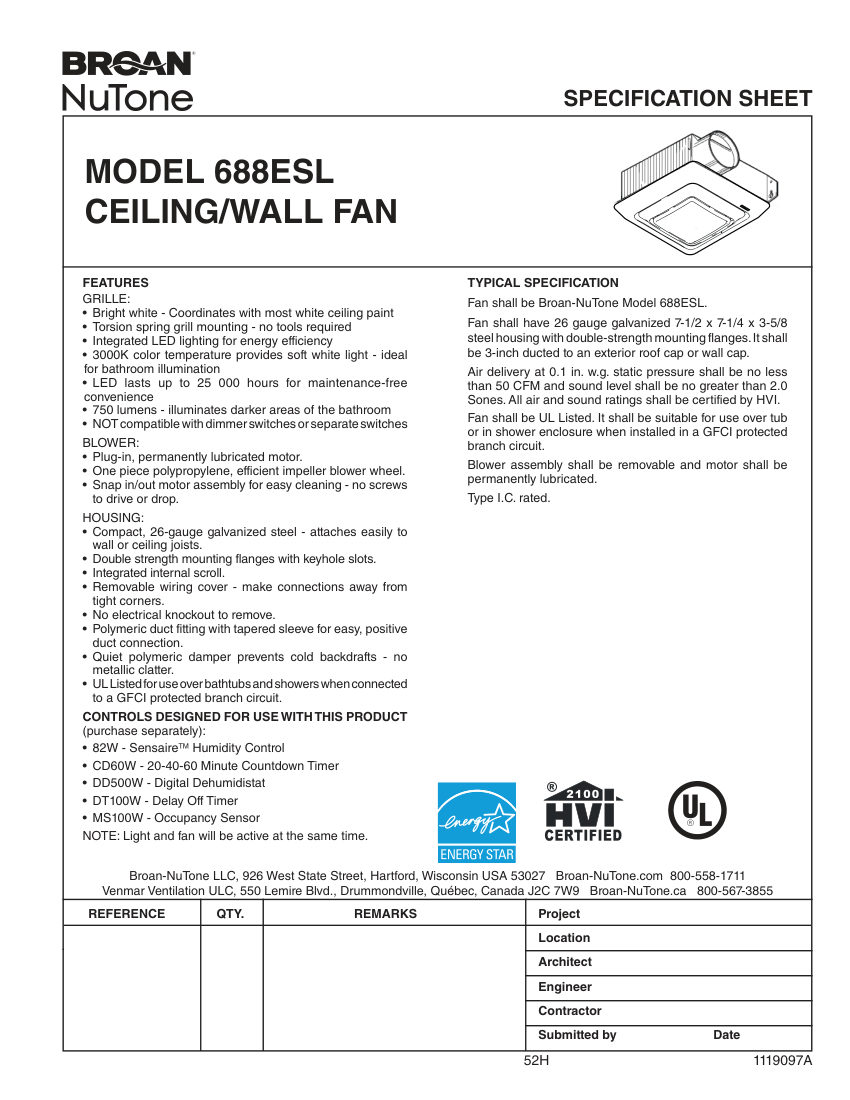

Broan 688ESL cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
688ESL
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog number688ESL
DescriptionBroan Ceiling/Wall Fan (Exhaust Fan). Model 688ESL. Integrated LED lighting with 3000K color temperature and 750 lumens; Sound level no greater than 2.0 Sones; Suitable for use over tub or in shower enclosure when installed in a GFCI protected branch circuit; Plug-in, permanently lubricated motor with snap in/out assembly. material: 26 gauge galvanized steel housing, polypropylene impeller
Connection size3-inch duct
End connectionPolymeric duct fitting with tapered sleeve
Pressure Rating0.1 in. w.g. static pressure
Flow Rate50 CFM
FinishBright white.
