BroanNuTone® 50 CFM Ventilation Fan696N
Broan Ceiling/Wall Ventilation Fan (Ventilation). Model 696N. 50 CFM airflow at 0.1 in. w.g. static pressure; Sound level no greater than 4.0 sones; Suitable for bathrooms up to 45 sq. ft.; Plug-in, permanently lubricated motor. material: 25 gauge galvanized steel housing, polymeric grille
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Broan
- Catalog no.
- 696N
- Product type
- Ventilation
- MasterFormat
- 23

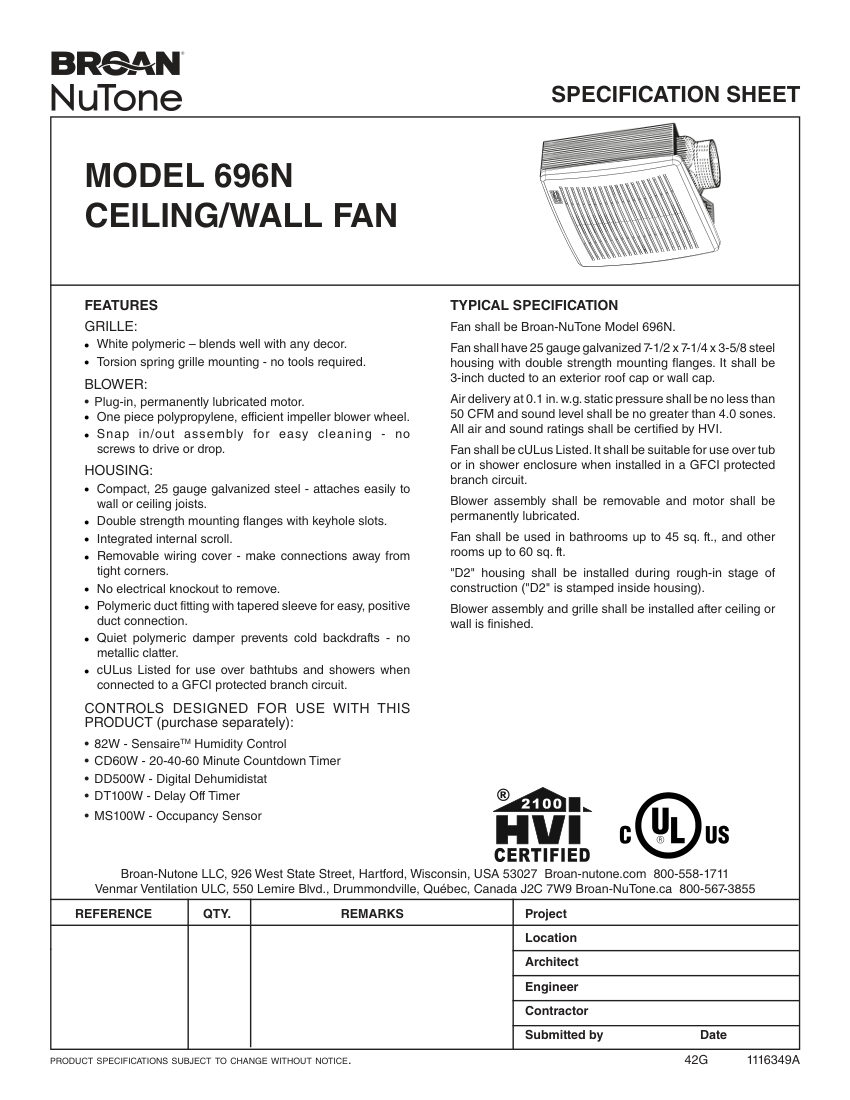

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | 696N |
|---|---|
| Description | Broan Ceiling/Wall Ventilation Fan (Ventilation). Model 696N. 50 CFM airflow at 0.1 in. w.g. static pressure; Sound level no greater than 4.0 sones; Suitable for bathrooms up to 45 sq. ft.; Plug-in, permanently lubricated motor. material: 25 gauge galvanized steel housing, polymeric grille |
| Connection size | 3-inch duct |
| End connection | Polymeric duct fitting with tapered sleeve |
| Pressure Rating | 0.1 in. w.g. static pressure |
| Flow Rate | 50 CFM |
| Finish | White polymeric grille. |
