DIV 23 · HVACVENTILATIONCUT SHEET INDEXED

Broan744

Broan Recessed Ventilation Fan Light (Recessed Fan / Light). Model 744. 70 CFM air delivery at 0.10 in. static pressure; 1.5 Sones sound level; Accepts R30, BR30, PAR30L, or PAR30LN bulbs (max 75W); Corrosion-resistant steel housing with removable motor assembly. material: 26 gage galvanized steel housing, polymeric trim ring

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF744.pdfData sheet

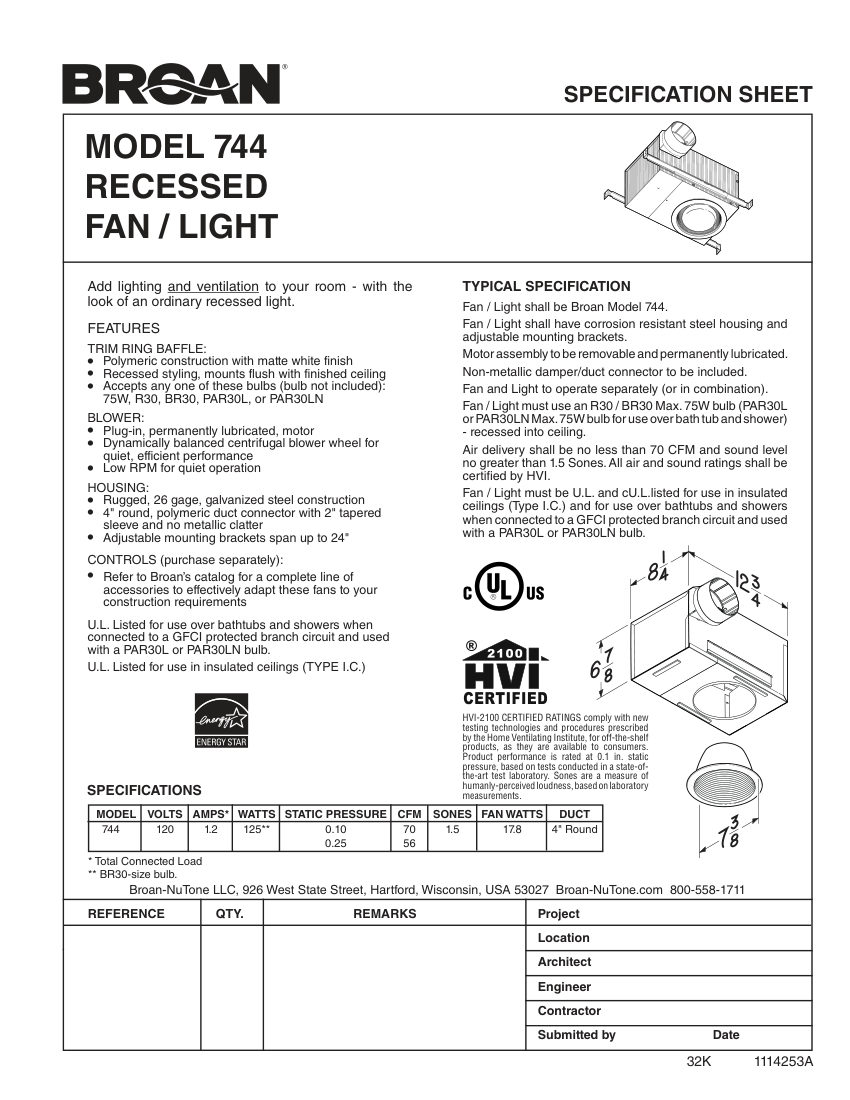

Broan 744 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
744
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog number744
DescriptionBroan Recessed Ventilation Fan Light (Recessed Fan / Light). Model 744. 70 CFM air delivery at 0.10 in. static pressure; 1.5 Sones sound level; Accepts R30, BR30, PAR30L, or PAR30LN bulbs (max 75W); Corrosion-resistant steel housing with removable motor assembly. material: 26 gage galvanized steel housing, polymeric trim ring
Connection size4" round duct connector
End connection4" round duct connector with 2" tapered sleeve
Pressure Rating0.10 in. static pressure
Flow Rate70 CFM
FinishMatte white.
