DIV 23 · HVACVENTILATIONCUT SHEET INDEXED

Broan744LEDNT

Broan Recessed Fan / LED Light (Ventilation). Model 744LEDNT. 70 CFM airflow at 1.5 Sones; Includes BR30-shaped, 2700K, 9.5W dimmable LED lamp with GU24 base; Permanently lubricated, dynamically balanced centrifugal blower; Fits standard 2" x 8" ceiling joist construction. material: Galvanized steel housing, polymeric trim ring and duct connector

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF744LEDNT.pdfData sheet

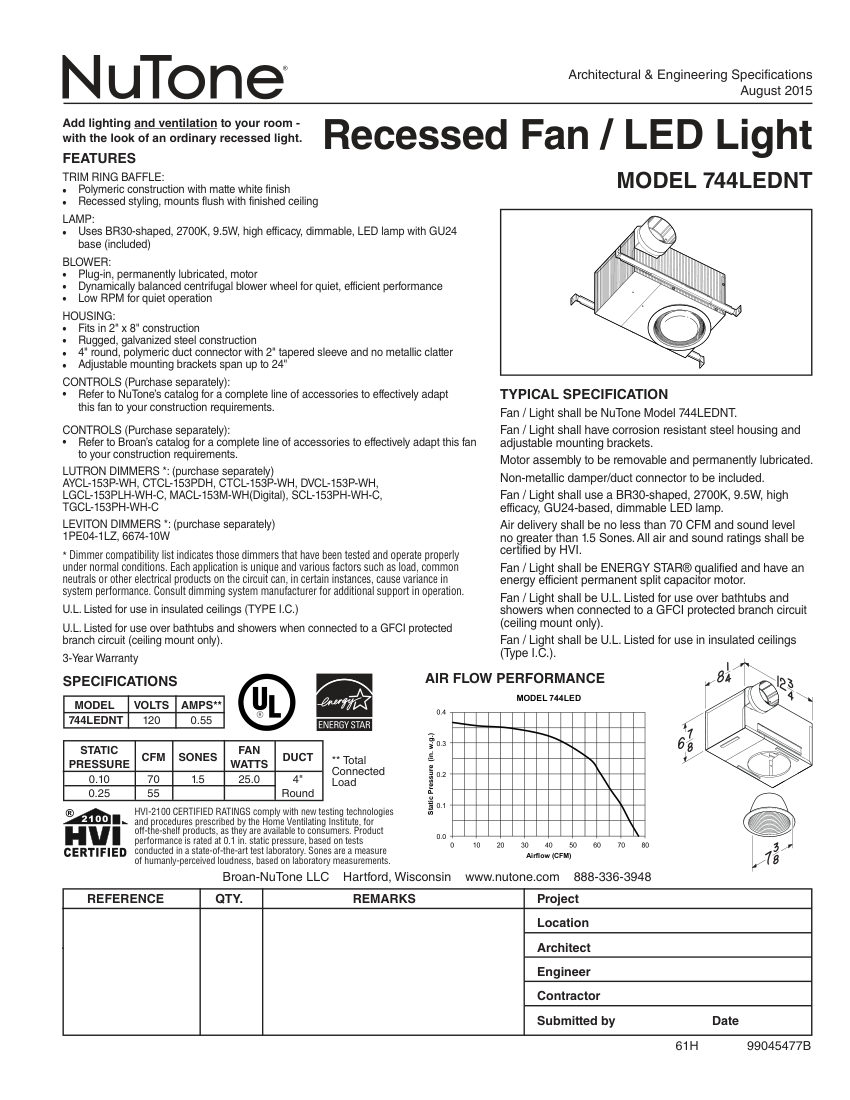

Broan 744LEDNT cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
744LEDNT
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog number744LEDNT
DescriptionBroan Recessed Fan / LED Light (Ventilation). Model 744LEDNT. 70 CFM airflow at 1.5 Sones; Includes BR30-shaped, 2700K, 9.5W dimmable LED lamp with GU24 base; Permanently lubricated, dynamically balanced centrifugal blower; Fits standard 2" x 8" ceiling joist construction. material: Galvanized steel housing, polymeric trim ring and duct connector
Connection size4" round duct connector with 2" tapered sleeve
End connectionPlug-in
Pressure Rating0.10 in. w.g. (rated)
Flow Rate70 CFM
FinishMatte white.
