DIV 23 · HVACVENTILATIONCUT SHEET INDEXED

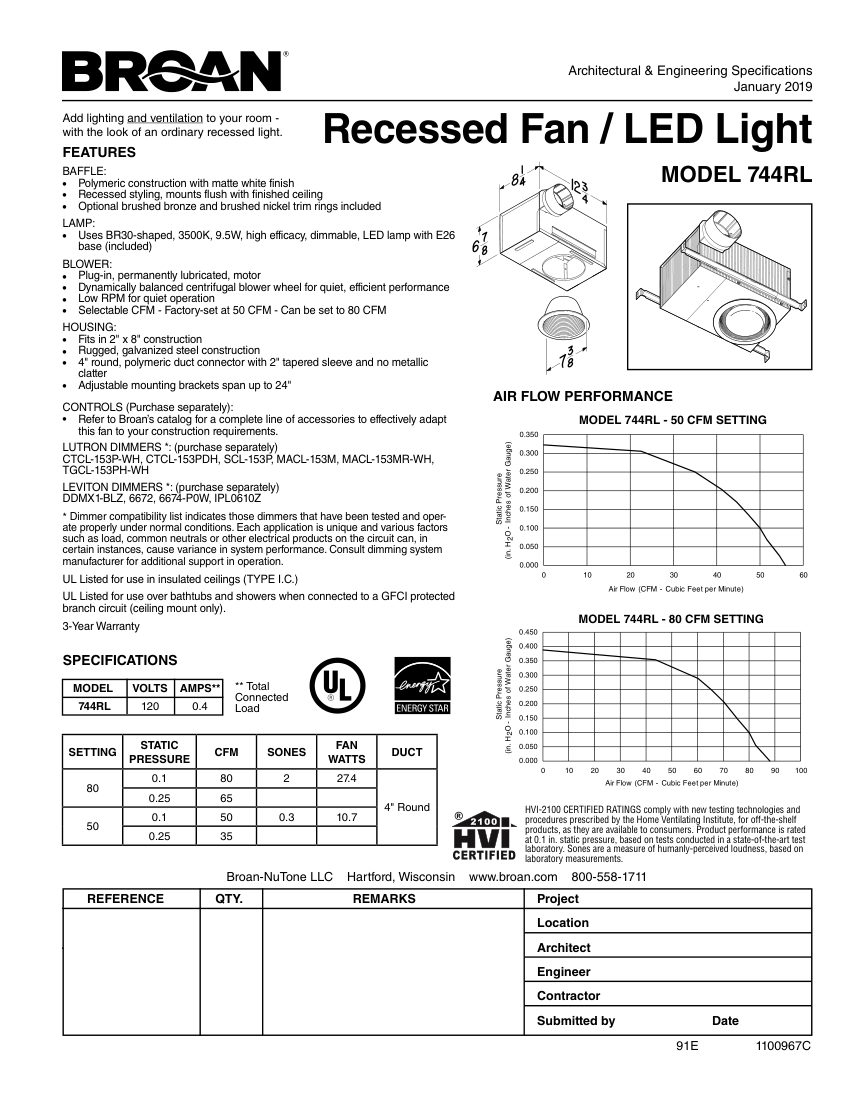

BroanBroan® Recessed 50744RL

Name: Broan Broan® Recessed 50 (744RL)
Brand: Broan
SKU: 744RL

Broan Recessed bathroom fan with integrated LED light (Recessed Fan / LED Light). Model 744RL. Includes BR30-shaped 9.5W dimmable LED lamp (3500K)

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	744RL
Description	Broan Recessed bathroom fan with integrated LED light (Recessed Fan / LED Light). Model 744RL. Includes BR30-shaped 9.5W dimmable LED lamp (3500K)
Selectable airflow	50 CFM or 80 CFM
Low noise operation	0.3 Sones at 50 CFM; Adjustable mounting brackets span up to 24". material: Galvanized steel housing, polymeric baffle
Connection size	4" round duct connector
End connection	Plug-in
Flow Rate	50 CFM (factory set), selectable to 80 CFM
Finish	Matte white baffle, optional brushed bronze/nickel trim
Mounting	Recessed, fits 2" x 8" construction.
