Broan770RLTK
Broan Decorative Ventilation Fan Light (Ventilation). Model 770RLTK. 80 CFM airflow at 0.1 in. static pressure; 2.5 sones noise level; 55.4 watts fan power consumption; 1.5 amps at 120V. material: 26-gage galvanized steel housing, polymeric blower wheel
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Broan
- Catalog no.
- 770RLTK
- Product type
- Ventilation
- MasterFormat
- 23

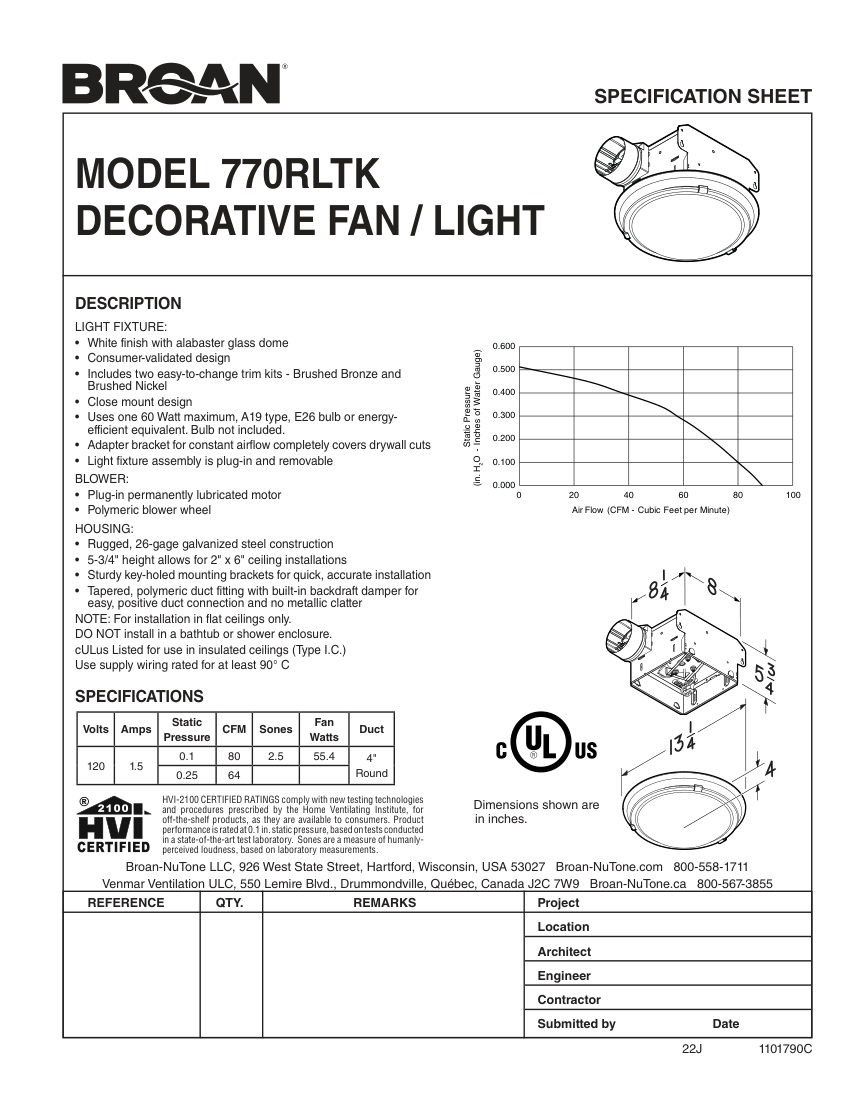

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | 770RLTK |
|---|---|
| Description | Broan Decorative Ventilation Fan Light (Ventilation). Model 770RLTK. 80 CFM airflow at 0.1 in. static pressure; 2.5 sones noise level; 55.4 watts fan power consumption; 1.5 amps at 120V. material: 26-gage galvanized steel housing, polymeric blower wheel |
| Connection size | 4" Round |
| End connection | Tapered polymeric duct fitting |
| Pressure Rating | 0.1 in. H2O (rated), 0.25 in. H2O (64 CFM) |
| Flow Rate | 80 CFM |
| Finish | White with alabaster glass dome; includes Brushed Bronze and Brushed Nickel trim kits. |
