BroanBroan791LEDM
Broan Ventilation Fan with LED Light (Ventilation). Model 791LEDM. 12 Watt integrated dimmable LED light; Sound level 1.5 sones at 0.1 in. H2O; Permanently lubricated plug-in motor; Built-in backdraft damper. material: 25-gage galvanized steel
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Broan
- Catalog no.
- 791LEDM
- Product type
- Ventilation
- MasterFormat
- 23

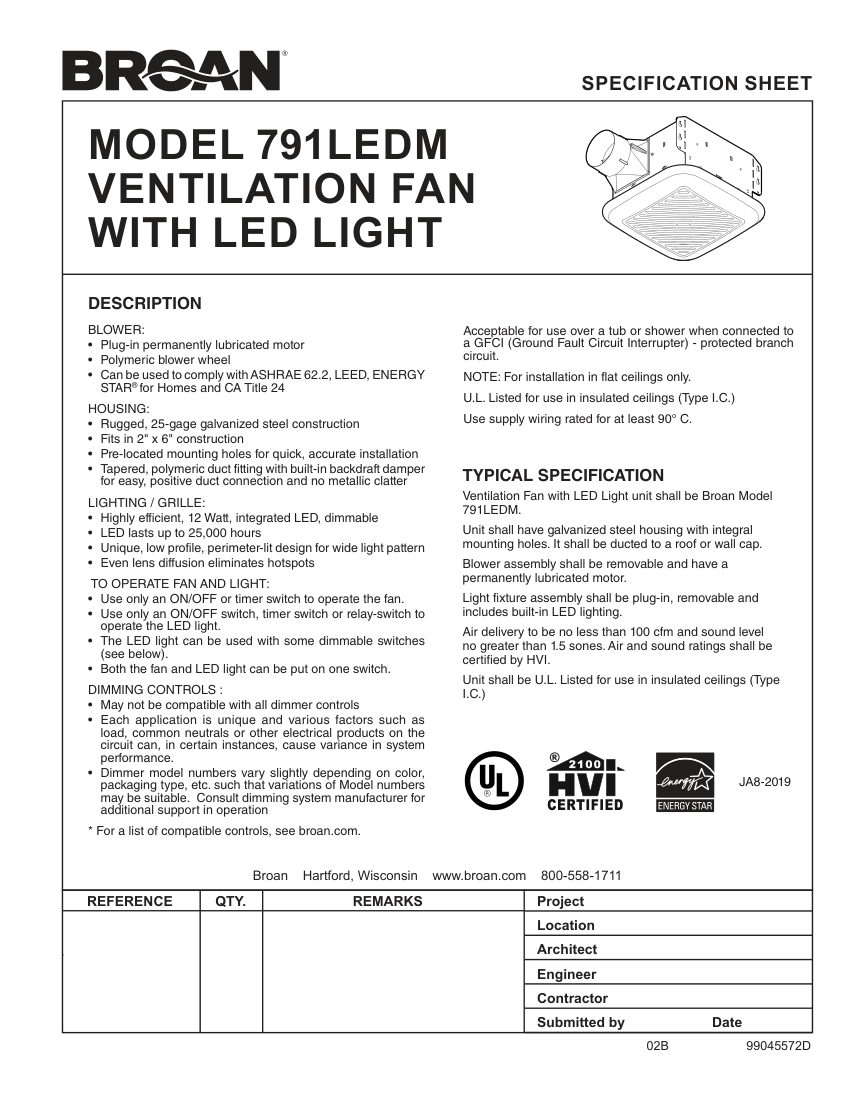

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | 791LEDM |
|---|---|
| Description | Broan Ventilation Fan with LED Light (Ventilation). Model 791LEDM. 12 Watt integrated dimmable LED light; Sound level 1.5 sones at 0.1 in. H2O; Permanently lubricated plug-in motor; Built-in backdraft damper. material: 25-gage galvanized steel |
| Connection size | 2" x 6" construction |
| End connection | Tapered polymeric duct fitting |
| Flow Rate | 110 CFM at 0.1 in. H2O |
| Mounting | Flat ceilings only |
| Compliance | HVI-2100, UL Listed (Type I.C.), ASHRAE 62.2, LEED, ENERGY STAR, CA Title 24. |
