BroanNuTone® 70 CFM Heater Exhaust Vent Fan w/ Light9093WH

Broan Combination Fan-Forced Heater, Ventilator and Ceiling Light (Heater Exhaust Vent Fan). Model 9093CWH. 70 CFM air delivery; 3.5 Sones sound level; 1500W nickel-chrome open coil heating element; 120V, 1717W electrical rating. material: Galvanized steel housing, die-cast zinc grille, glass lens

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF9093WH.pdfData sheet

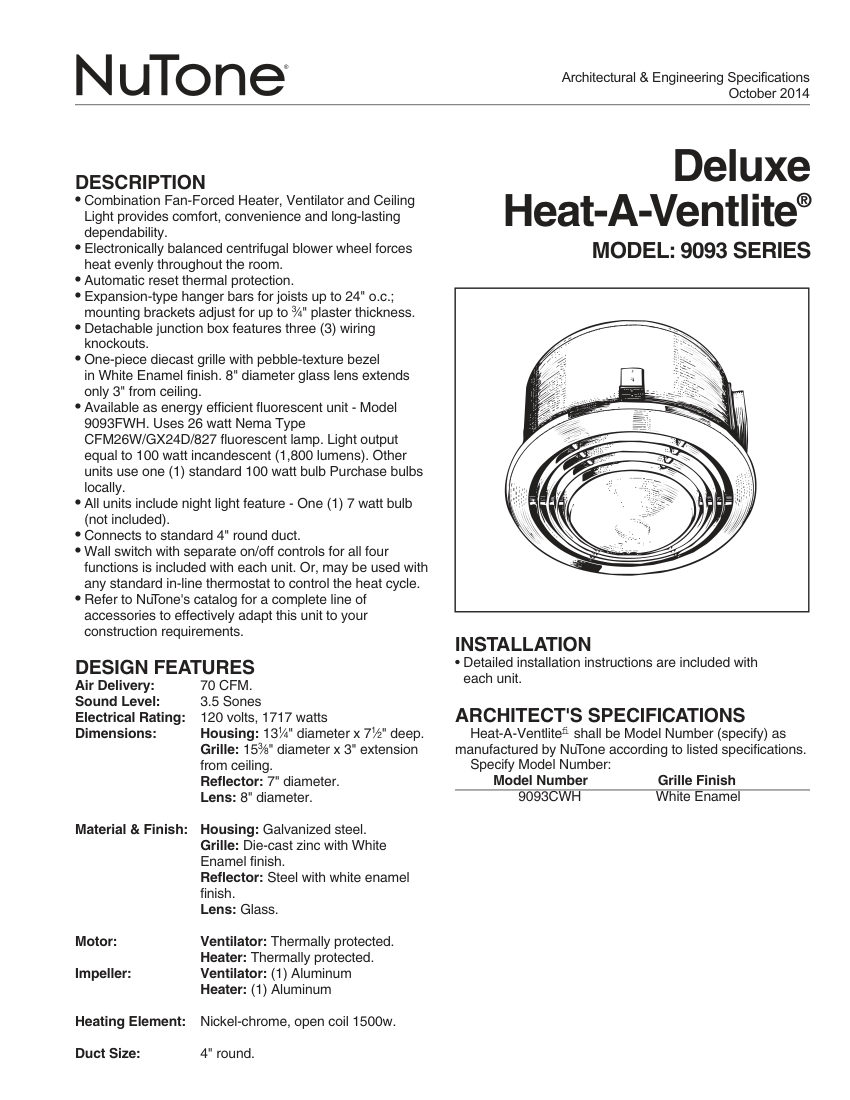

Broan 9093WH cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
9093WH
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog number9093WH
DescriptionBroan Combination Fan-Forced Heater, Ventilator and Ceiling Light (Heater Exhaust Vent Fan). Model 9093CWH. 70 CFM air delivery; 3.5 Sones sound level; 1500W nickel-chrome open coil heating element; 120V, 1717W electrical rating. material: Galvanized steel housing, die-cast zinc grille, glass lens
Connection size4" round duct
End connectionStandard 4" round duct
Flow Rate70 CFM
FinishWhite Enamel
MountingExpansion-type hanger bars for joists up to 24" o.c.; mounting brackets adjust for up to 3/4" plaster thickness.
