BroanNuTone® One9417DNM
Broan Infrared Bulb Heater (Bathroom Fan Heater). Model 9417DNM. Uses 250 W BR40-size infrared bulb (not included); Total connected load 300 W; Sound level 4.0 sones; Plug-in, permanently lubricated motor. material: Corrosion resistant steel housing, polymeric grille
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Broan
- Catalog no.
- 9417DNM
- Product type
- Ventilation
- MasterFormat
- 23

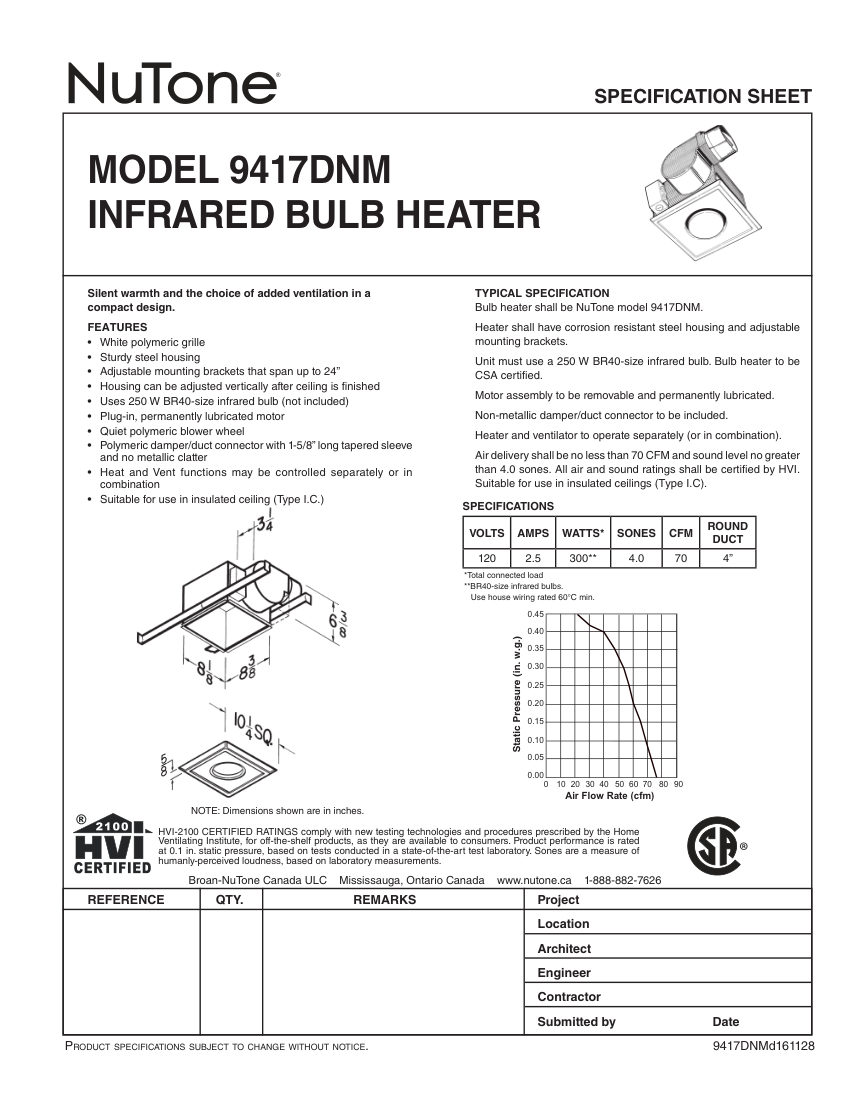

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | 9417DNM |
|---|---|
| Description | Broan Infrared Bulb Heater (Bathroom Fan Heater). Model 9417DNM. Uses 250 W BR40-size infrared bulb (not included); Total connected load 300 W; Sound level 4.0 sones; Plug-in, permanently lubricated motor. material: Corrosion resistant steel housing, polymeric grille |
| Connection size | 4" round duct |
| End connection | Polymeric damper/duct connector with 1-5/8" long tapered sleeve |
| Flow Rate | 70 CFM |
| Finish | White |
| Mounting | Adjustable brackets, suitable for insulated ceilings (Type I.C). |
