DIV 23 · HVACVENTILATIONCUT SHEET INDEXED

BroanNuTone® Two9422P

Broan Ceiling Mounted Infrared Bulb Heater (Infrared Bulb Heater). Model 9422P, 9427P. Uses (2) 250W BR40-size infrared bulbs; Total connected load 505W (9422P) or 545W (9427P); Sound level 4.0 Sones (9427P only); Adjustable mounting brackets span up to 24". material: Corrosion resistant steel housing, polymeric grille

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF9422P.pdfData sheet

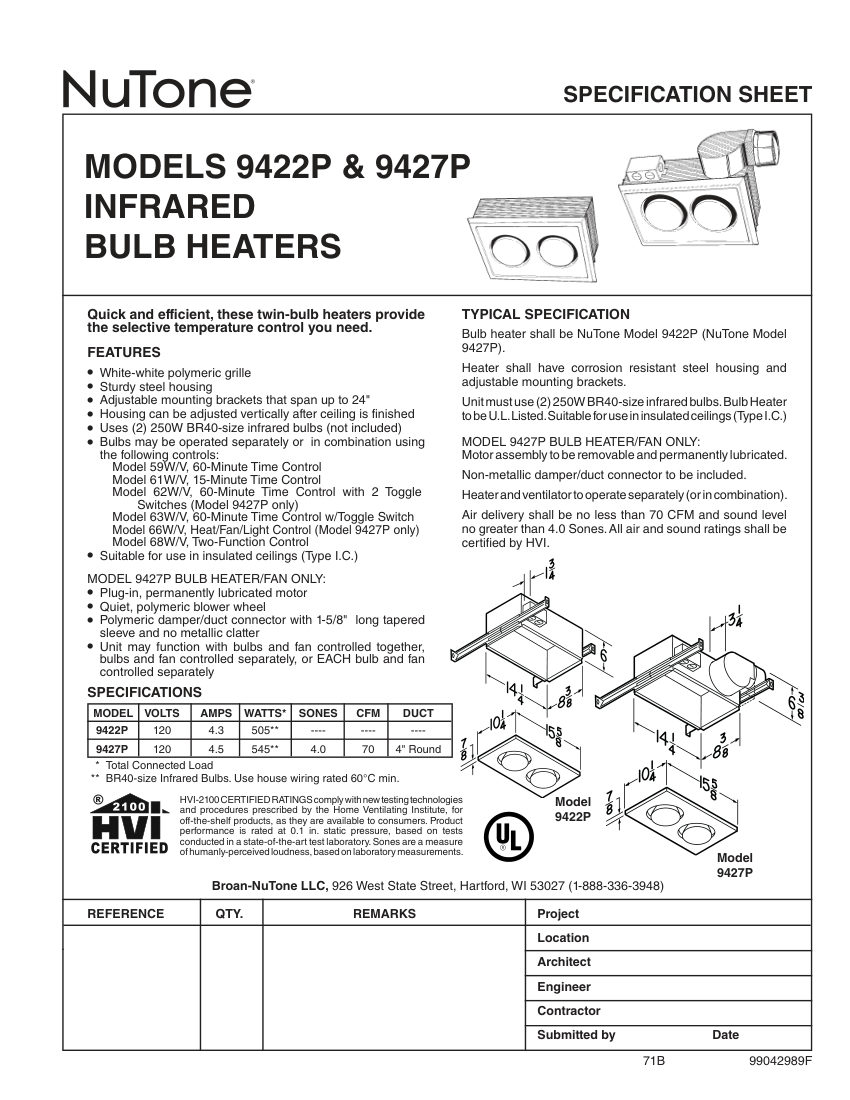

Broan 9422P cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
9422P
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog number9422P
DescriptionBroan Ceiling Mounted Infrared Bulb Heater (Infrared Bulb Heater). Model 9422P, 9427P. Uses (2) 250W BR40-size infrared bulbs; Total connected load 505W (9422P) or 545W (9427P); Sound level 4.0 Sones (9427P only); Adjustable mounting brackets span up to 24". material: Corrosion resistant steel housing, polymeric grille
Connection size4" Round duct (9427P only)
End connectionPolymeric damper/duct connector
Flow Rate70 CFM (9427P only)
FinishWhite-white polymeric grille
MountingAdjustable brackets, suitable for insulated ceilings (Type I.C.).

Also cataloged as: 9427P
