BroanA110
Broan Bathroom Exhaust Fan (Flex Series). Model A80, A110. Permanently lubricated plug-in motor for continuous operation; Centrifugal blower wheel with low RPM for quiet operation
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Broan
- Catalog no.
- A110
- Product type
- Ventilation
- MasterFormat
- 23
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | A110 |
|---|---|
| Description | Broan Bathroom Exhaust Fan (Flex Series). Model A80, A110. Permanently lubricated plug-in motor for continuous operation; Centrifugal blower wheel with low RPM for quiet operation |
| A80 | 80 CFM at 2.0 Sones, 43.1 Watts |
| A110 | 110 CFM at 3.0 Sones, 46.9 Watts. material: Galvanized steel housing, polymeric duct connector and grille |
| Connection size | 4" round ductwork |
| End connection | Polymeric duct connector with tapered sleeve |
| Pressure Rating | 0.1 in. H2O (HVI rated) |
| Flow Rate | 80 CFM (A80), 110 CFM (A110) |
| Mounting | Ceiling, four-point mounting to joist, up to 7/12 pitch. |
Also cataloged as: A110F1, A80F1, AE80F1, A80

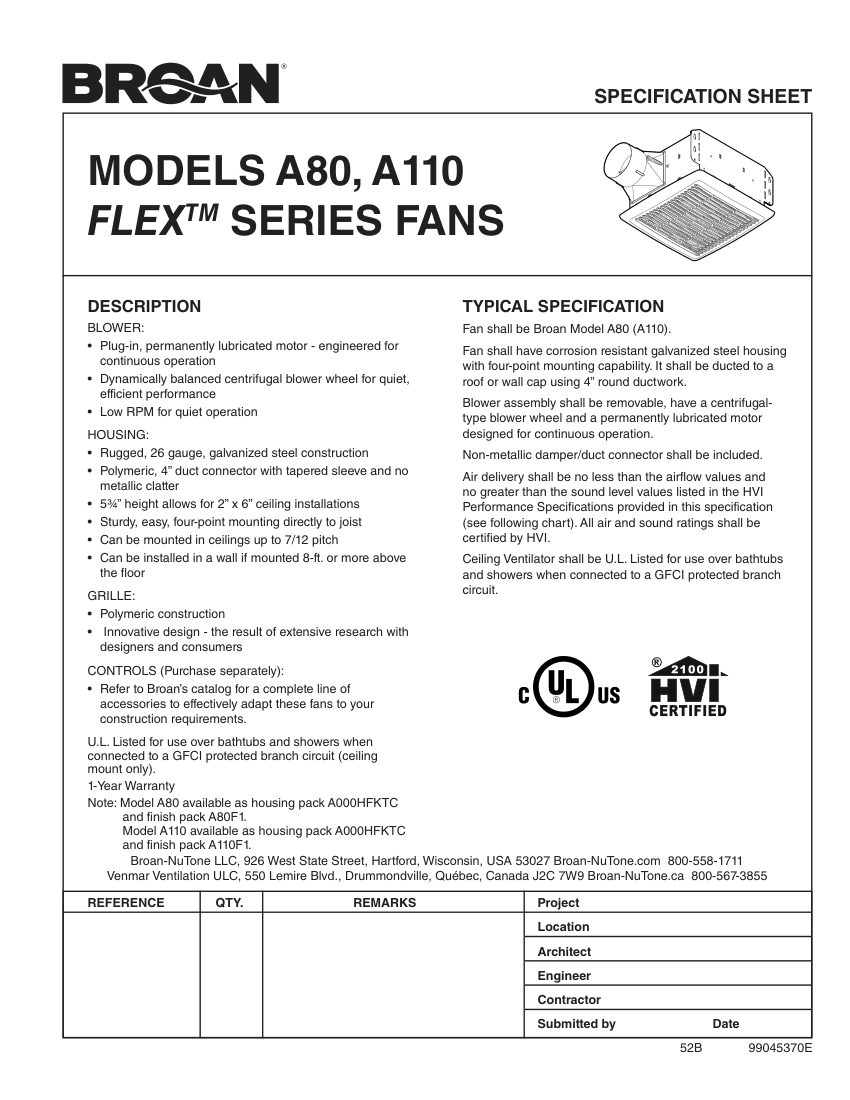

- Official cut sheet, indexed
