BroanAE110KF
Broan Ceiling Exhaust Fan (Exhaust Fan). Model AE110K. 110 CFM airflow at 0.1 in. H2O static pressure; 1.0 Sones sound level; 23.4 Watts power consumption; Permanently lubricated plug-in motor. material: Galvanized steel housing, polymeric duct connector
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Broan
- Catalog no.
- AE110KF
- Product type
- Ventilation
- MasterFormat
- 23
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | AE110KF |
|---|---|
| Description | Broan Ceiling Exhaust Fan (Exhaust Fan). Model AE110K. 110 CFM airflow at 0.1 in. H2O static pressure; 1.0 Sones sound level; 23.4 Watts power consumption; Permanently lubricated plug-in motor. material: Galvanized steel housing, polymeric duct connector |
| Connection size | 4" round ductwork |
| End connection | Polymeric duct connector with tapered sleeve |
| Pressure Rating | 0.1 in. H2O (HVI rated) |
| Flow Rate | 110 CFM |
| Mounting | Four-point mounting to joist, ceiling up to 7/12 pitch. |
Also cataloged as: AE110K

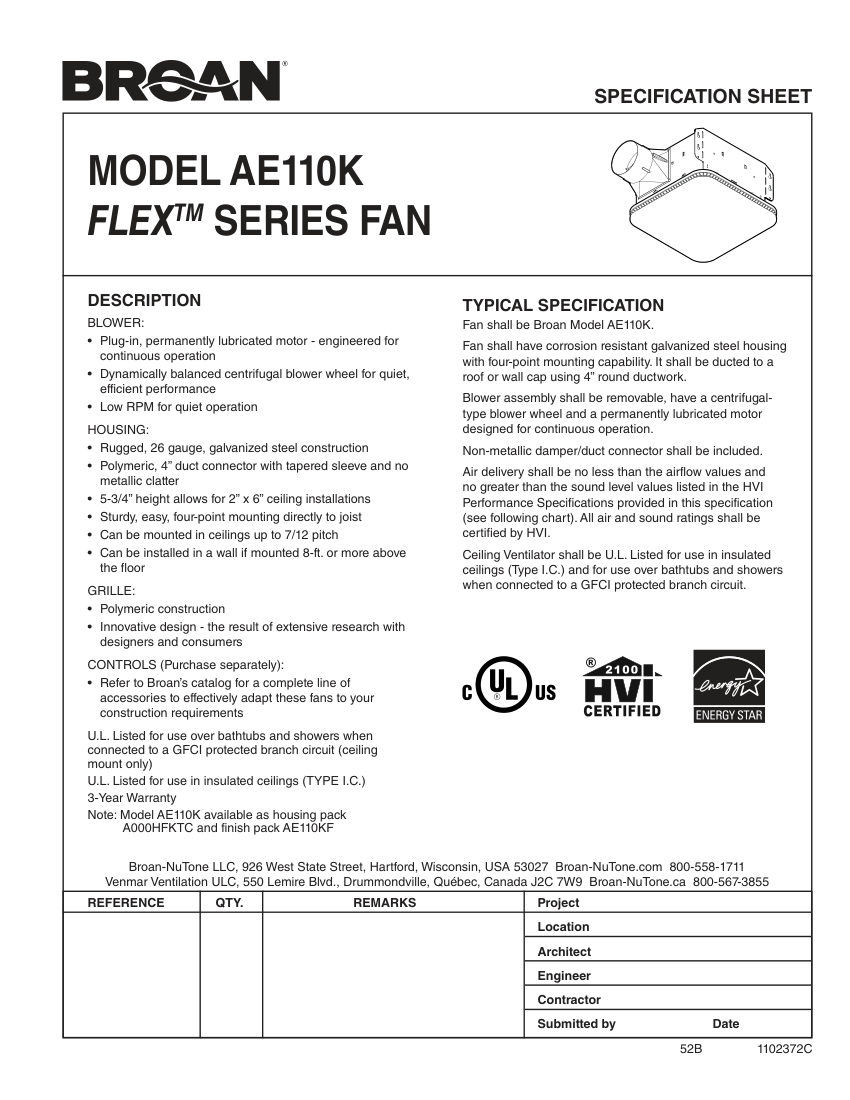

- Official cut sheet, indexed
