DIV 23 · HVACVENTILATIONCUT SHEET INDEXED

BroanBroanAE110LK

Broan Fan / Light (FLEX Series). Model AE110LK. 11-Watt integrated LED lighting with 3500K color temperature; 800 lumen output (min.); 1.0 Sones sound power level; Permanently lubricated plug-in motor for continuous operation. material: 26 gauge galvanized steel housing, polymeric grille and duct connector

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFAE110LK.pdfData sheet

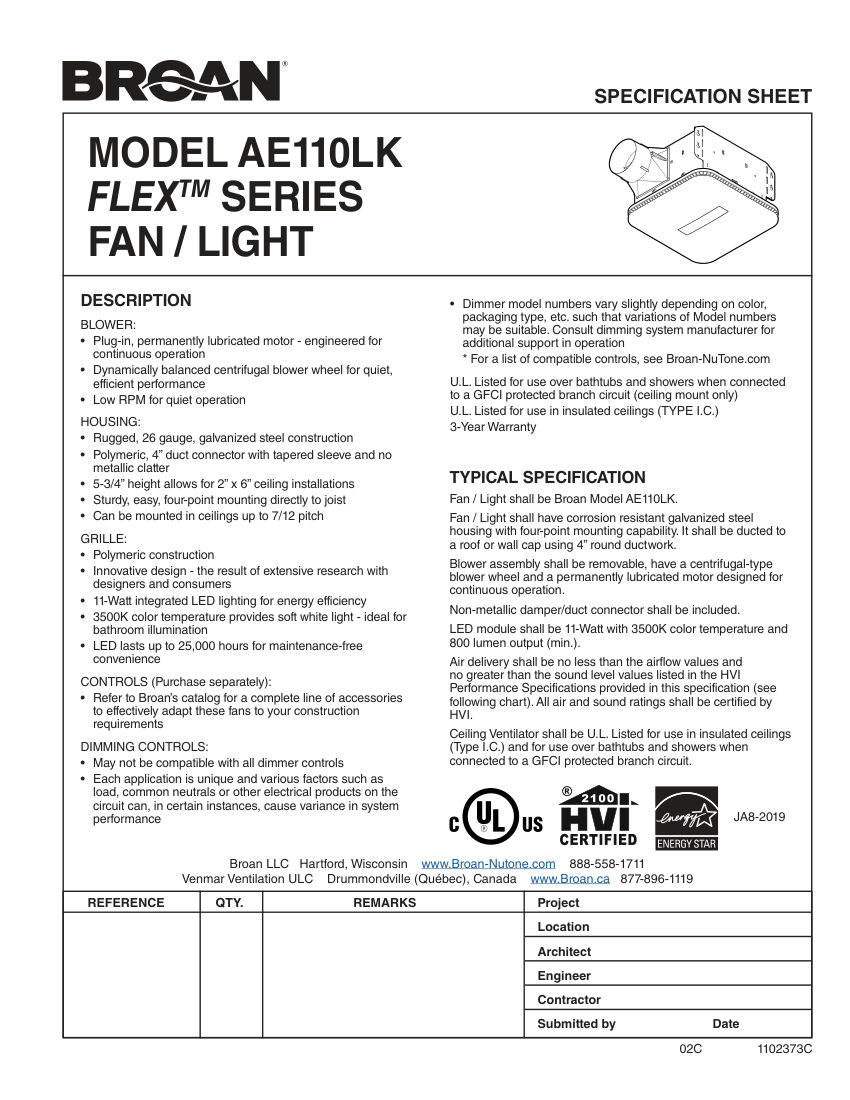

Broan AE110LK cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
AE110LK
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberAE110LK
DescriptionBroan Fan / Light (FLEX Series). Model AE110LK. 11-Watt integrated LED lighting with 3500K color temperature; 800 lumen output (min.); 1.0 Sones sound power level; Permanently lubricated plug-in motor for continuous operation. material: 26 gauge galvanized steel housing, polymeric grille and duct connector
Connection size4" round duct
End connectionPolymeric duct connector with tapered sleeve
Pressure Rating0.1 in. H2O (HVI certified)
Flow Rate110 CFM
MountingFour-point mounting directly to joist, ceiling mount.

Also cataloged as: AE110LKF
