DIV 23 · HVACVENTILATIONCUT SHEET INDEXED

BroanBroan® 50AE50110DCF

Broan Inline Duct Fan (Broan Flex DC Series). Model AE50110DC. Selectable airflow settings of 50, 80, or 110 CFM; Brushless DC motor with permanently lubricated bearings; Sound level < 0.3 Sones at 50 CFM setting; Power consumption 4.6 Watts at 50 CFM setting. material: Galvanized steel housing, polymeric damper/grille

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFAE50110DCF.pdfData sheet

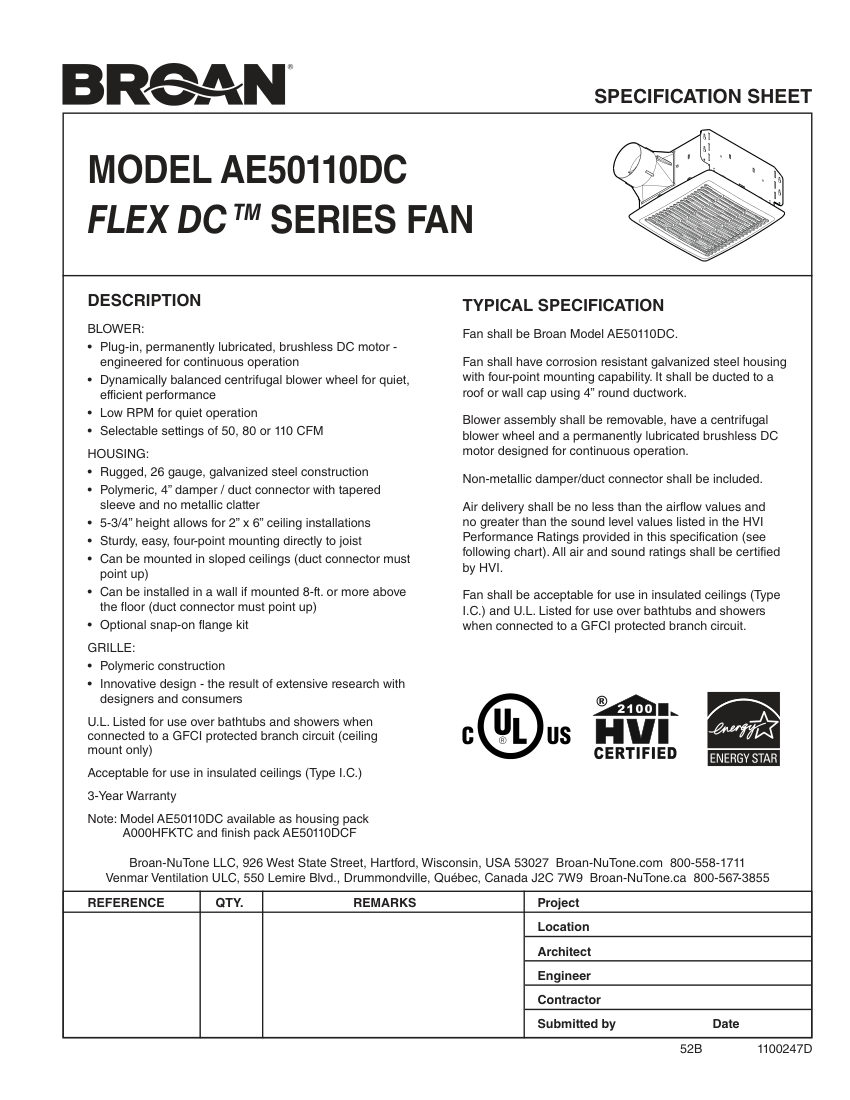

Broan AE50110DCF cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
AE50110DCF
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberAE50110DCF
DescriptionBroan Inline Duct Fan (Broan Flex DC Series). Model AE50110DC. Selectable airflow settings of 50, 80, or 110 CFM; Brushless DC motor with permanently lubricated bearings; Sound level < 0.3 Sones at 50 CFM setting; Power consumption 4.6 Watts at 50 CFM setting. material: Galvanized steel housing, polymeric damper/grille
Connection size4" round ductwork
End connectionPolymeric damper/duct connector
Pressure Rating0.1 to 0.25 in. H2O
Flow Rate50, 80, or 110 CFM
MountingFour-point joist mounting, sloped ceiling, or wall (8-ft+ above floor).

Also cataloged as: AE50110DC
