DIV 23 · HVACVENTILATIONCUT SHEET INDEXED

BroanBroan® Flex DC™ Series 50AE50110DCLF

Broan Bathroom Exhaust Fan / Light (Flex DC Series). Model AE50110DCL. Brushless DC motor with permanently lubricated bearings; Integrated 11-Watt LED light, 3500K, 800 lumens min; Selectable airflow settings: 50, 80, or 110 CFM; Sound level < 0.3 Sones at 50 CFM setting. material: Galvanized steel housing, polymeric grille and damper

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFAE50110DCLF.pdfData sheet

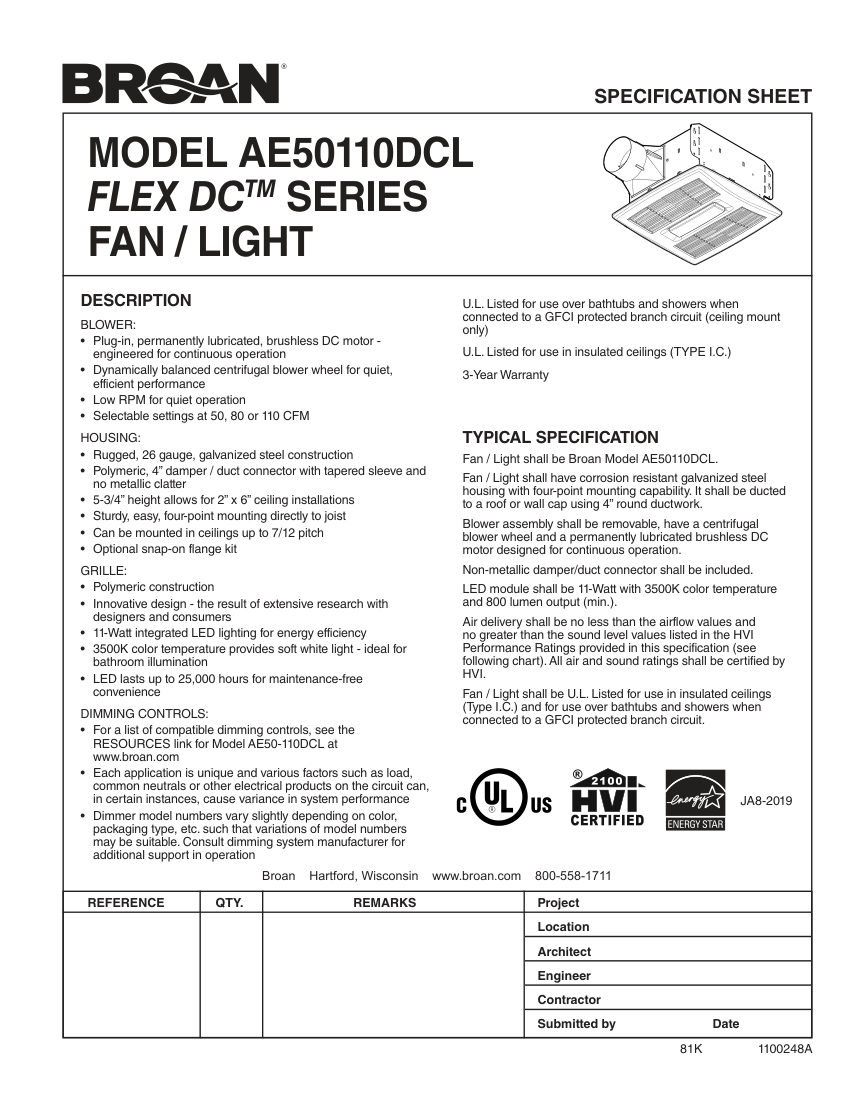

Broan AE50110DCLF cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
AE50110DCLF
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberAE50110DCLF
DescriptionBroan Bathroom Exhaust Fan / Light (Flex DC Series). Model AE50110DCL. Brushless DC motor with permanently lubricated bearings; Integrated 11-Watt LED light, 3500K, 800 lumens min; Selectable airflow settings: 50, 80, or 110 CFM; Sound level < 0.3 Sones at 50 CFM setting. material: Galvanized steel housing, polymeric grille and damper
Connection size4" round duct
End connectionPolymeric damper / duct connector with tapered sleeve
Flow Rate50, 80, or 110 CFM (selectable)
MountingCeiling mount, four-point to joist, up to 7/12 pitch
Dimensions5-3/4" height.

Also cataloged as: QTXEDCLH, AE50110DCL
