DIV 23 · HVACVENTILATIONCUT SHEET INDEXED

BroanBroanAE50110DCS

Broan Humidity Sensing Fan (Flex DC Series). Model AE50110DCS. Brushless DC motor with permanent lubrication; Automatic humidity sensing with adjustable set-point (50%-80% RH); Selectable airflow settings: 50, 80, or 110 CFM; Acceptable for use in insulated ceilings (Type I.C.). material: Galvanized steel housing, polymeric damper/grille

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFAE50110DCS.pdfData sheet

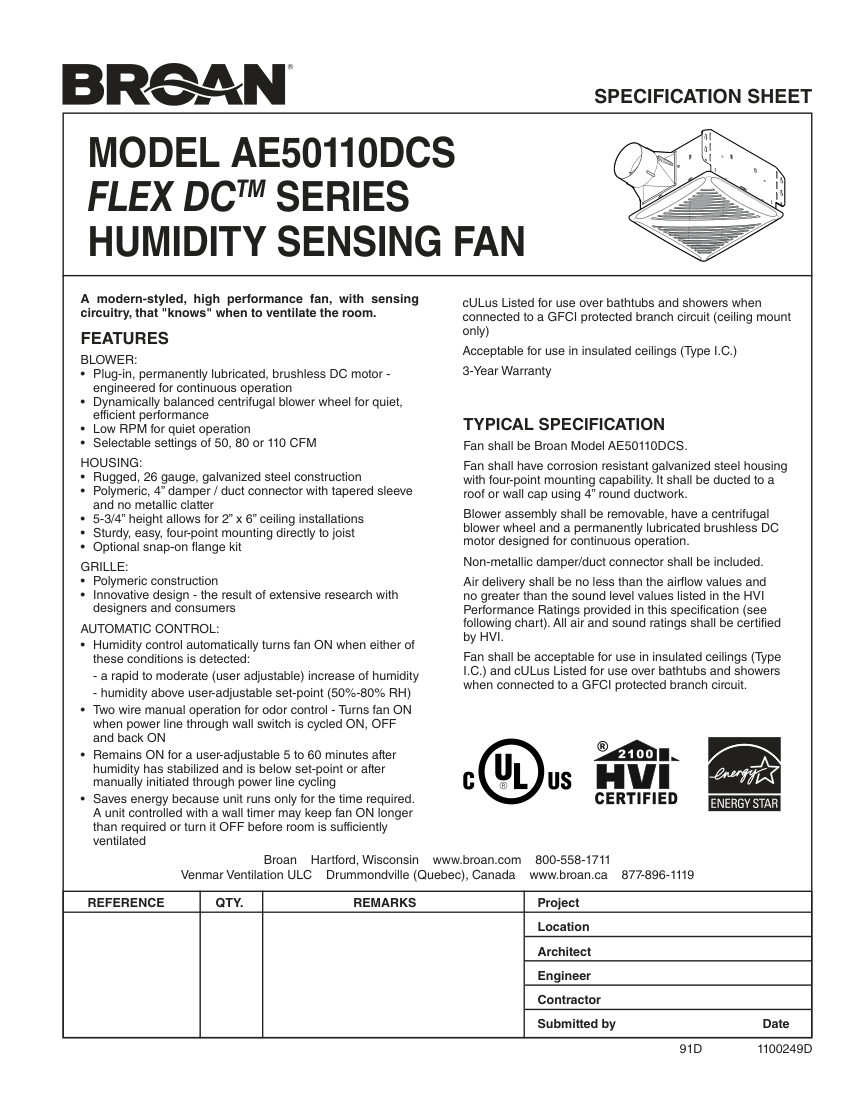

Broan AE50110DCS cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
AE50110DCS
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberAE50110DCS
DescriptionBroan Humidity Sensing Fan (Flex DC Series). Model AE50110DCS. Brushless DC motor with permanent lubrication; Automatic humidity sensing with adjustable set-point (50%-80% RH); Selectable airflow settings: 50, 80, or 110 CFM; Acceptable for use in insulated ceilings (Type I.C.). material: Galvanized steel housing, polymeric damper/grille
Connection size4" round ductwork
End connectionPolymeric damper/duct connector with tapered sleeve
Flow Rate50, 80, or 110 CFM (selectable)
MountingFour-point mounting to joist, 5-3/4" height for 2" x 6" ceilings
Dimensions5-3/4" height.
