BroanAE80LF1
Broan Bathroom Exhaust Fan with Light (Bathroom Exhaust Fan). Model A80L, A110L. 80 CFM airflow at 0.1 in H2O (A80L); 110 CFM airflow at 0.1 in H2O (A110L); 1.0 Sones sound level (A80L); 1.3 Sones sound level (A110L). material: Galvanized steel housing, polymeric grille
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Broan
- Catalog no.
- AE80LF1
- Product type
- Ventilation
- MasterFormat
- 23

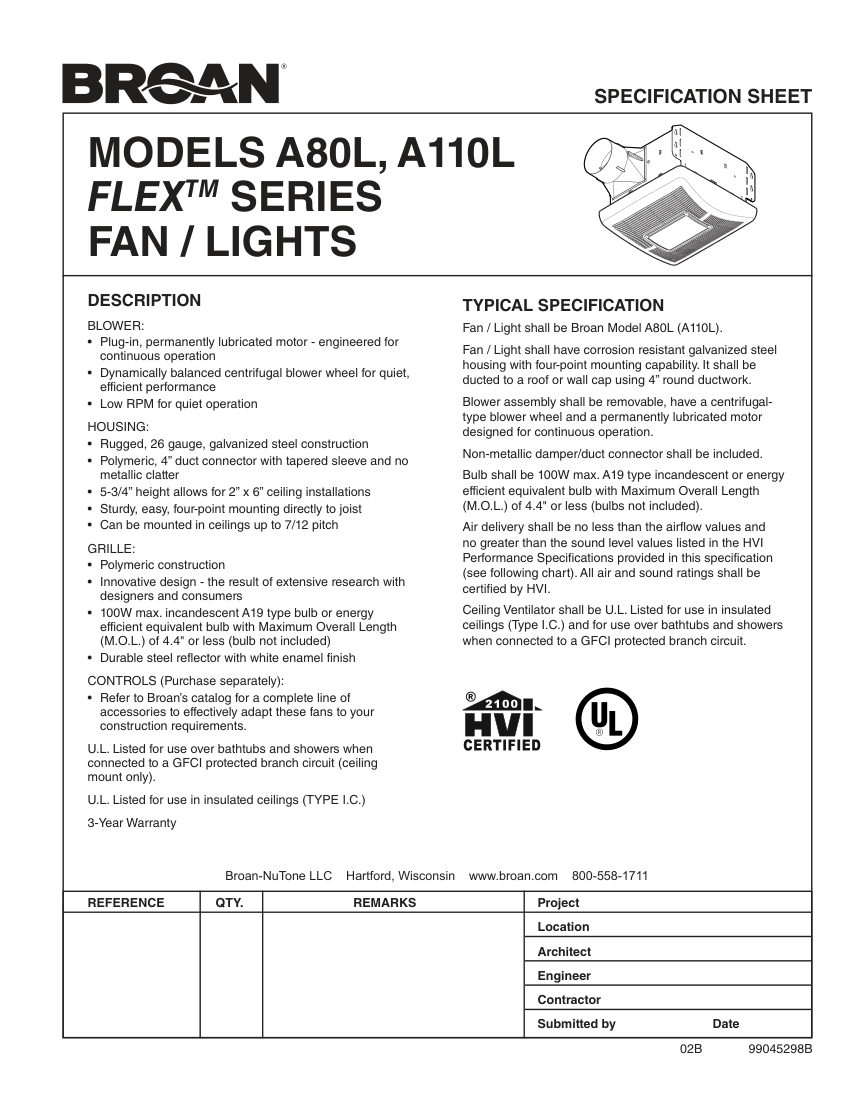

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | AE80LF1 |
|---|---|
| Description | Broan Bathroom Exhaust Fan with Light (Bathroom Exhaust Fan). Model A80L, A110L. 80 CFM airflow at 0.1 in H2O (A80L); 110 CFM airflow at 0.1 in H2O (A110L); 1.0 Sones sound level (A80L); 1.3 Sones sound level (A110L). material: Galvanized steel housing, polymeric grille |
| Connection size | 4" round ductwork |
| End connection | Polymeric duct connector with tapered sleeve |
| Pressure Rating | 0.1 in H2O (HVI rated) |
| Flow Rate | 80 CFM (A80L), 110 CFM (A110L) |
| Finish | White enamel reflector. |
