BroanBroanAE80LK
Broan Ceiling Fan / Light (FLEX Series). Model AE80LK. 11-Watt integrated LED with 3500K color temperature; 800 lumen minimum light output; 80 CFM airflow at 0.1 in. H2O static pressure; 0.7 Sones sound power level. material: Galvanized steel housing, polymeric grille
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Broan
- Catalog no.
- AE80LK
- Product type
- Ventilation
- MasterFormat
- 23

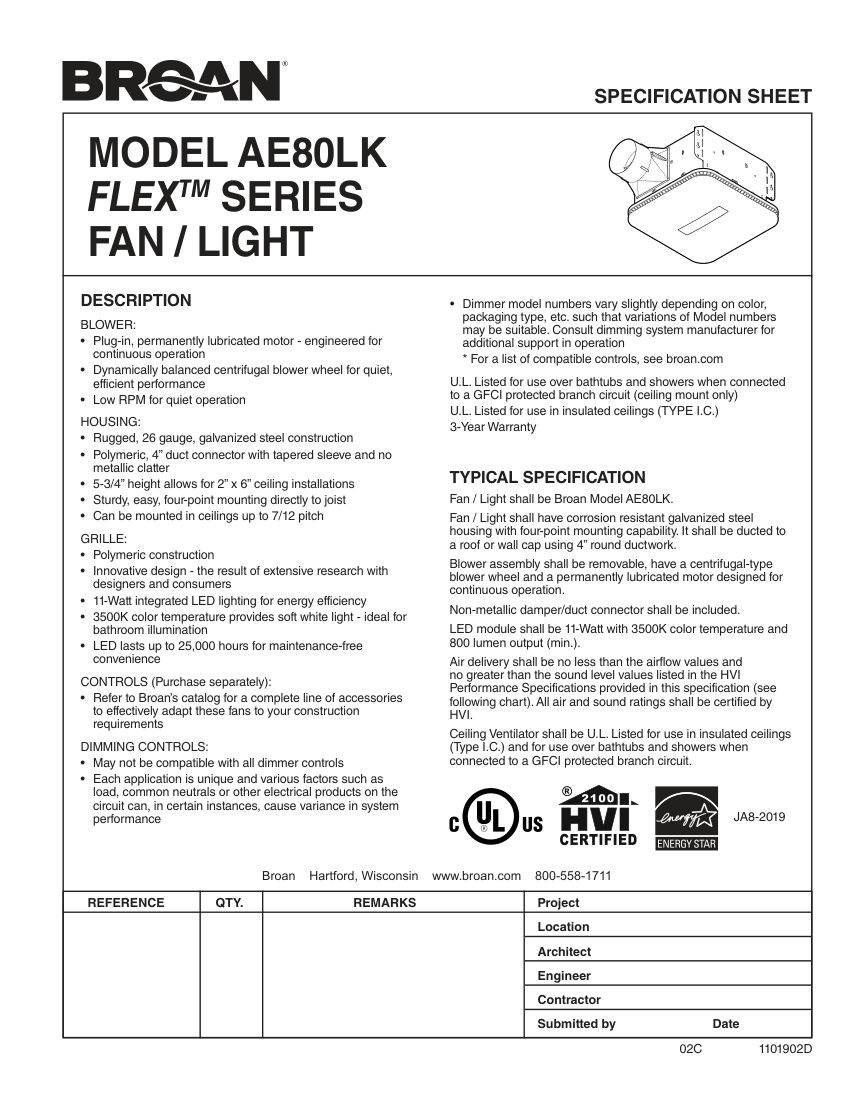

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | AE80LK |
|---|---|
| Description | Broan Ceiling Fan / Light (FLEX Series). Model AE80LK. 11-Watt integrated LED with 3500K color temperature; 800 lumen minimum light output; 80 CFM airflow at 0.1 in. H2O static pressure; 0.7 Sones sound power level. material: Galvanized steel housing, polymeric grille |
| Connection size | 4" duct connector |
| End connection | Ducted to roof or wall cap |
| Pressure Rating | 0.1 in. H2O (HVI certified) |
| Flow Rate | 80 CFM |
| Mounting | Four-point mounting to joist, ceiling up to 7/12 pitch. |
Also cataloged as: AE80LKF
